| KEY
POSITION |
CONNECTION |
CURRENT
MAX 12V |
MAX
CONNECTION TIME |
FUNCTION |
| 0
OFF |
- |
- |
- |
- |
| 0
ON |
30
- 15/54 |
15
A |
 |
ACCESSORIES |
| 1
OFF |
30
- 57/58 |
10
A |
|
PARKING
LIGHTS |
| 1
ON |
30
- 15/54 30 - 57/58 |
5
A + 10 A |
|
ACCESSORIES |
| 2
OFF |
30
- 57/58 30 - 56b |
15
A + 10 A |
|
PARKING
/ TRAFFIC BEAMS |
| 2
ON |
30
- 15/54 30 - 57/58 30 - 56/b |
15
A + 10 A + 10A |
|
ACCESSORIES |
| 3
OFF |
30
- 57/58 30 - 56/a |
10
A + 10A |
|
ACCESSORIES
PARKING / TRAFFIC BEAMS |
| 3
ON |
30
- 15/54 30 - 57/58 30 - 56/a |
15
A + 10 A + 10A |
|
ACCESSORIES
PARKING / TRAFFIC BEAMS |
|

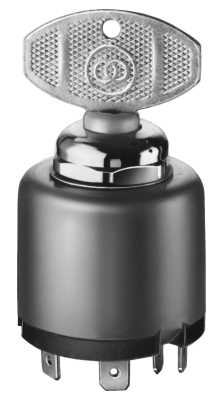

23.100.000 |
