| 14.109.500 | 14.109.001 |

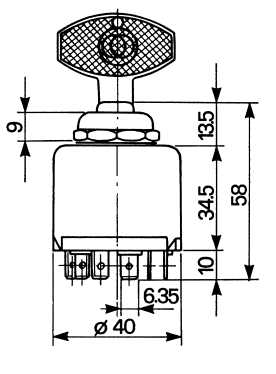

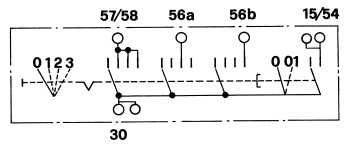

| WIRING DIAGRAM | CONNECTION BOARD | KEY POSITION | CONNECTION | CURRENT MAX 12V | MAX CONNECTION TIME | FUNCTION |
 |
 |
0 OFF | - | - | - | - |
| 0 ON | 30 - 15/54 | 15 A |  |
ACCESSORIES | ||
| 1 OFF | 30 - 57/58 | 10 A | |
PARKING LIGHTS | ||
| 1 ON | 30 - 15/54 30 - 57/58 | 5 A + 10 A | |
ACCESSORIES | ||
| 2 OFF | 30 - 57/58 30 - 56b | 15 A + 10 A | |
PARKING / TRAFFIC BEAMS | ||
| 2 ON | 30 - 15/54 30 - 57/58 30 - 56/b | 15 A + 10 A + 10A | |
ACCESSORIES | ||
| 3 OFF | 30 - 57/58 30 - 56/a | 10 A + 10A | |
ACCESSORIES PARKING / TRAFFIC BEAMS | ||
| 3 ON | 30 - 15/54 30 - 57/58 30 - 56/a | 15 A + 10 A + 10A | |
ACCESSORIES PARKING / TRAFFIC BEAMS |
