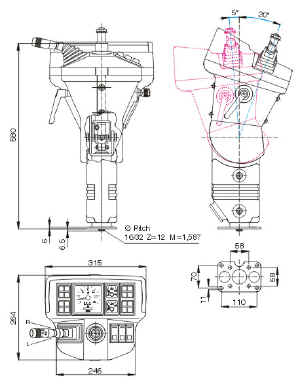

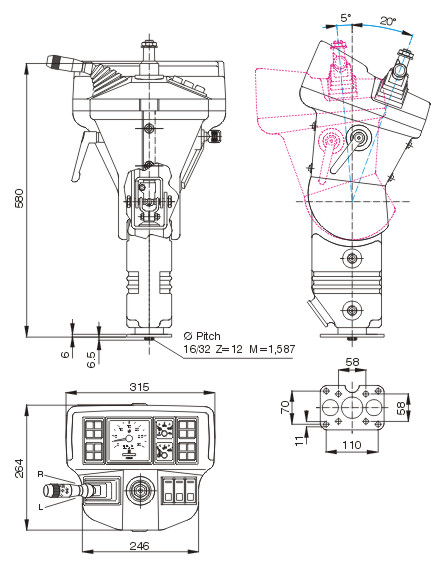

• STEERING WHEEL TAPER DANFOSS 1 ( 1 : 20 - Ø 23,2 ).
• CONNECTION FOR HYDRAULIC POWER STEERING 16/32" - Z = 12 - M = 1,587.
• ABS PLASTIC COVERING.
• CONNECTORS AT THE END OF THE HARNESS AMP CPC SERIES 2 AND 3.
• OTHER CUSTOMIZED REQUESTS WILL BE CHECKED DURING THE PROJECT DEVELOPMENT
• COMPLETE OF HARNESS
• TILT ADJUSTMENT OF 25° (20° TOWARD THE OPERATOR AND 5° TOWARD THE WINDSHIELD) BY LEVER ON THE LEFT SIDE.
• ON REQUEST TELESCOPIC ADJUSTMENT OF 55 MM (SEE IT 305 DRAWING).
• INSTRUMENTATION AND ELECTRIC COMPONENTS BY CUSTOMER REQUEST.
