REAR MECHANICAL SUSPENSION WITH DIRECT-ACTING HYDRAULIC SHOCK-ABSORBER. - CONTINUOUS ADJUSTMENT OF DRIVER'S WEIGHT FROM 50 TO 120 KG. - SUSPENSION TRAVEL 80 mm. - LONGITUDINAL ADJUSTMENT ON RUNNERS WITH FIELD OF ADJUSTMENT 165 mm. - HORIZONTAL FIXING PLATE CAN BE ANGLED AT 13 .

SC46 - SC41- SC76 - SC74 - SC70 - GT62 - GT60 - GT50 - GL28 - SC25 - SC20 - SE33 - SP12 - SP10

REAR MECHANICAL SUSPENSION WITH DIRECT-ACTING HYDRAULIC SHOCK-ABSORBER. - CONTINUOUS ADJUSTMENT OF DRIVER'S WEIGHT FROM 50 TO 120 KG. - SUSPENSION TRAVEL 60 mm. - LONGITUDINAL ADJUSTMENT ON RUNNERS WITH FIELD OF ADJUSTMENT 165 mm. - HORIZONTAL FIXING PLATE. - ALSO AVAILABLE IN VERSIONS WITH FIXING PLATE ANGLED AT 15  (JOHN DEERE VERSION) AND 20  (FIAT-DEUTZ AND STEYR VERSIONS).

SC46 - SC41 - SC76 - SC74 - SC70 - GT62 - GT60 - GT50 - GL28 - SC25 - SC20 - SE33 - SP12 - SP10

REAR MECHANICAL SUSPENSION WITH DIRECT-ACTING HYDRAULIC SHOCK-ABSORBER. - CONTINUOUS ADJUSTMENT OF DRIVER'S WEIGHT FROM 50 TO 120 KG. - SUSPENSION TRAVEL 60 mm. - CONTINUOU HEIGHT ADJUSTMENT WITH FIELD OF ADJUSTMENT 60 mm. - LONGITUDINAL ADJUSTMENT ON RUNNERS WITH FIELD OF ADJUSTMENT 165 mm. - HORIZONTAL FIXING PLATE. - ALSO AVAILABLE IN VERSIONS WITH FIXING PLATE ANGLED AT 15  (JOHNDEERE VERSION) AND 20  (FIAT-DEUTZ AND STEYR VERSIONS).

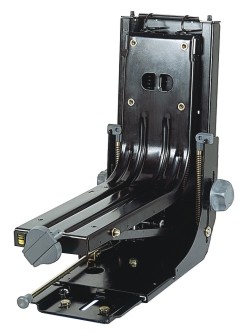

PANTOGRAPH MECHANICAL SUSPENSION WITH DIRECT-ACTING HYDRAULIC SHOCK-ABSORBER. - CONTINUOUS ADJUSTMENT OF DRIVER'S WEIGHT FROM 50 TO 120 KG. - SUSPENSION TRAVEL 80 mm. - CONTINUOUS HEIGHT ADJUSTMENT WITH FIELD OF ADJUSTMENT 60 mm. - LONGITUDINAL ADJUSTMENT ON RUNNERS WITH FIELD OF ADJUSTMENT 150 MM. - HORIZONTAL FIXING PLATE. - AVAILABLE ALSO WITH TILTING FIXING PLATE 19 (M30i) AND ECONOMIC VERSION (M30e) WITHOUT WEIGHT INDICATOR AND WITHOUT FACILITATE HEIGHT ADJUSTMENT.

PANTOGRAPH MECHANICAL SUSPENSION WITH DIRECT-ACTING HYDRAULIC SHOCK-ABSORBER. - CONTINUOUS ADJUSTMENT OF DRIVER'S WEIGHT FROM 50 TO 120 KG. - SUSPENSION TRAVEL 100 mm. - CONTINUOUS HEIGHT ADJUSTMENT WITH FIELD OF ADJUSTMENT 80 mm. - LONGITUDINAL ADJUSTMENT ON RUNNERS WITH FIELD OF ADJUSTMENT 150 mm.

PANTOGRAPH MECHANICAL SUSPENSION WITH DIRECT-ACTING HYDRAULIC SHOCK-ABSORBER. - CONTINUOUS ADJUSTMENT OF DRIVER'S WEIGHT FROM 50 TO 130 KG. - SUSPENSION TRAVEL 80 mm. - HEIGHT ADJUSTMENT WITH FIELD OF ADJUSTMENT 75 mm IN THREE STEPS. - LONGITUDINAL ADJUSTMENT ON RUNNERS WITH FIELD OF ADJUSTMENT 150 mm.

PANTOGRAPH MECHANICAL SUSPENSION WITH DIRECT-ACTING HYDRAULIC SHOCK-ABSORBER. - CONTINUOUS ADJUSTMENT OF DRIVER'S WEIGHT FROM 50 TO 130 KG. - SUSPENSION TRAVEL 45 mm. - LONGITUDINAL ADJUSTMENT ON RUNNERS WITH FIELD OF ADJUSTMENT 150 mm.

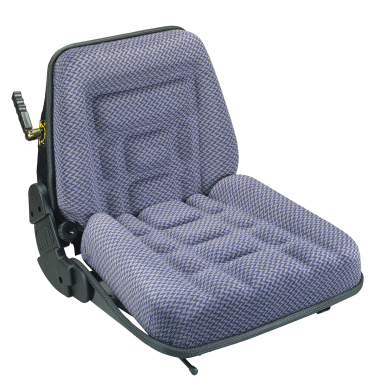

MECHANICAL SUSPENSION INCORPORATED IN THE BACKREST (SC40-PM). - CONTINUOUS ADJUSTMENT OF DRIVER'S WEIGHT FROM 50 TO 120 KG. - SUSPENSION TRAVEL 40 mm. - AVAILABLE WITH LONGITUDINAL ADJUSTMENT ON RUNNERS. FIELD OF ADJUSTMENT 150 mm. - ALSO AVAILABLE WITHOUT WEIGHT ADJUSTMENT: SUSPENSION SET 75 KG.

PANTOGRAPH PNEUMATIC SUSPENSION WITH DIRECT-ACTING HYDRAULIC SHOCK-ABSORBER. - CONTINUOUS ADJUSTMENT OF DRIVER'S WEIGHT FROM 50 TO 130 KG. - SUSPENSION TRAVEL 80 mm. - CONTINUOUSHEIGHT ADJUSTMENT WITH FIELD OF ADJUSTMENT 60 mm.
N.B. THE HEIGHT ADJUSTMENT AUTOMATICALLY ADJUSTS THE WEIGHT. - LONGITUDINAL ADJUSTMENT ON RUNNERS WITH FIELD OF ADJUSTMENT 150 mm. - SUPPLY VOLTAGE 12 V DC (24 V DC VERSION ALSO AVAILABLE).
ON REQUEST: ANTI-SHOCK DEVICE WITH TRAVEL 20+20 mm. HEIGHT LIMITING DEVICE WITH FIELD OF ADJUSTMENT 60 mm.

PANTOGRAPH PNEUMATIC SUSPENSION WITH DIRECT-ACTING HYDRAULIC SHOCK-ABSORBER. - CONTINUOUS ADJUSTMENT OF DRIVER'S WEIGHT FROM 50 TO 130 KG. - SUSPENSION TRAVEL 120 mm. - CONTINUOUS HEIGHT ADJUSTMENT WITH FIELD OF ADJUSTMENT 80 mm.
N.B. THE HEIGHT ADJUSTMENT AUTOMATICALLY ADJUSTS THE WEIGHT. - LONGITUDINAL ADJUSTMENT ON RUNNERS WITH FIELD OF ADJUSTMENT 150 mm. - SUPPLY VOLTAGE 12 V DC (24 V DC VERSION ALSO AVAILABLE). - ANTI-SHOCK DEVICE WITH TRAVEL 20+20 mm.
