VOLTAGE CONVERTER DC/DC CONVERTER 350W












TECHNICAL DATA
PART NUMBER
PART NUMBER
39.0017.0000
39.0020.0000
Maximum Peak Power 350W 350W
Nominal Power rating 300W 300W
Input-Output isolation (1000Vrms) SI / YES SI / YES
Frequency 64Khz 64Khz
Input voltages 80V 80V
Output voltages 24V 24V
Maximum Current Output 14.5A 14.5A
Nominal Current Output 12.5A 12.5A
Output Voltage Regulation +/- 1V +/- 1V
Output Voltage Ripple 100mVpkpk 100mVpkpk
Reverse polarity Protected Input SI / YES SI / YES
Short Circuit Protected Output SI / YES SI / YES
Overload Protection SI / YES SI / YES
MOSFET Fault Protection SI / YES SI / YES
Remote Habilitation - SI / YES
Load Sharing (till max 5 unities) - SI / YES
Device State Signal
SI / YES SI / YES
Efficiency >89% >89%
Ambient Operating temperature Range -30°C ÷ +45°C -30°C ÷ +45°C
Storage Temperature -40°C ÷ +70°C -40°C ÷ +70°C
Shock and Vibration Saej1378 Saej1378
Ambient Protection Level IP65 IP65
Weight 3,5Kg 3,5Kg

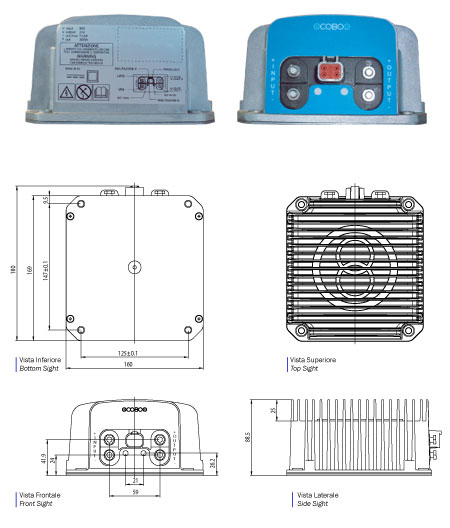

Dimension 183mm x 162mm x 89mm 183mm x 162mm x 89mm
EMC Specification 61000-6-3 for Emition
61000-6-2 for immunity
61000-6-3 for Emition
61000-6-2 for immunity
