ROCKER SWITCHES TRASPARENT (PC) ACTUATOR BUTTON REMOVABLE HANGER-ZAMA CHROMIUM PLATED ALLOY HOUSING-GLASS-NYLON BLACK

TABLE FOR CODE

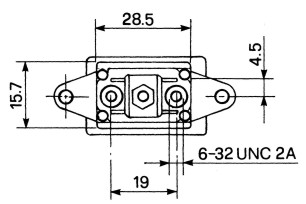

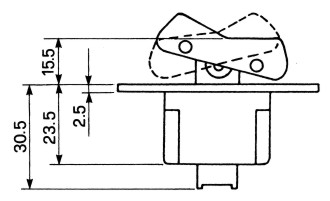

15122000_small.jpg  15122000_small1.jpg  15122000.jpg (14691 byte)



WIRING DIAGRAM NOMINAL TENSION NOMINAL D.C. CURRENT ACTION IP GRADE
(IEC 529)		 OPERATING TEMPERATURE
15122000_small.jpg 12 V 10 A MAINTAINED IP 67 - 40° C + 80° C
24 V 8 A MAINTAINED IP 67 - 40° C + 80° C
