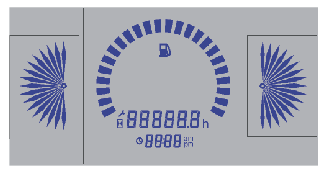

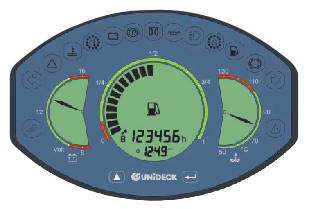

LCD Segments (Example) |
||
FEATURES
| Connector | AMP Tyco or Molex Fit |
| Display Window | Anti scratch resistant Polycarbonate screen |
| Display LED Symbols |
Customized display Customized symbols |

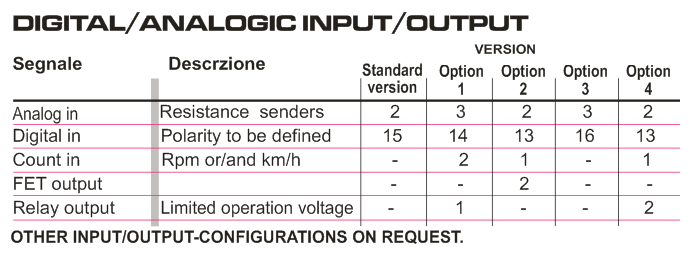

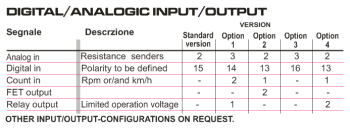

| Clock | Digital clock |
| Buttons | For clock setting and/or display mode switch |
| Buzzer | Loudness > = 85 dB |
| Output | Two 2A relays |
| Communication |
Digital / Analog in / out CAN Interface; CAN Open or SAE J1939 protocol |
TECHNICAL DATA

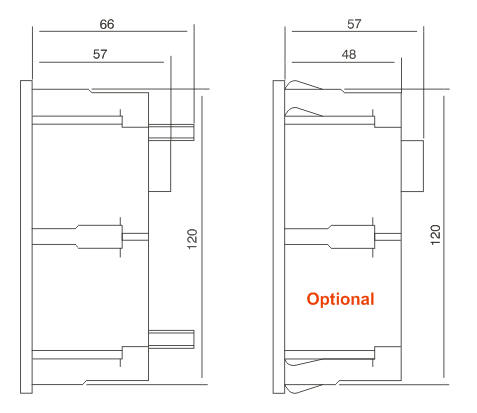

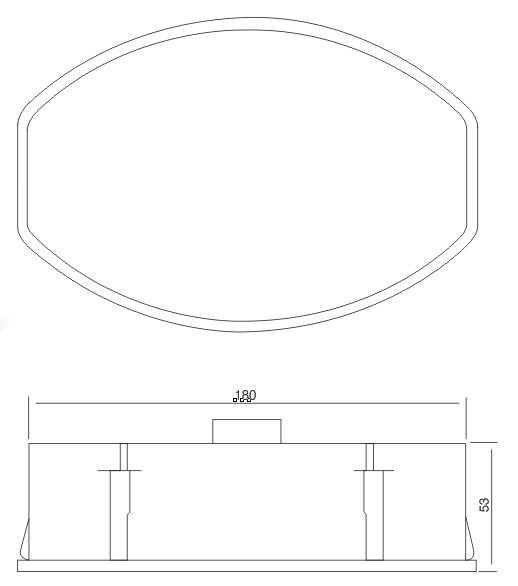

| Fixing | two metal straps with four nuts or six fixing clamps (optional) |
| IP Rating Front | IP67 |
| IP Rating Rear | IP65 |
|
Operating Temperature |
-40°C to +85°C |
|
Storage Temperature |
-40°C to +90°C |
| Humidity | 95% RH (non-condensing) |
| Vibration | EN 60068-2-64 (1g, 10-500Hz), SAE J1378 (20g, 10-80Hz) |
| Shock |
EN 60068-2-27 (30g, 18ms), EN
60068-2-29 (25g, 6ms) SAE J1378 (55g, 9-13ms) |

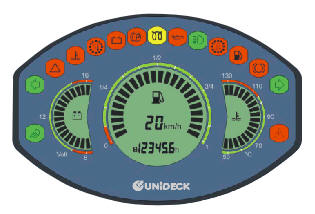

| ESD | EN 12895, DIN 40839, EN 13309 |
| Approbation | CE |
| Display |
TN - LCD with backlight 2 x 17-segment pointer (bargarph option) - Temperature - Battery voltage 1 x 24-segment bargraph - Fuel - others 6 numeric digits Display, supports the following modes: - Speed [km/h], [mph] - Service [h] - Hourmeter - Volt - rpm - Temperature [ C], [ F] - Error codes (Option CAN) 4 numeric digits, Digital clock others on request |
| LED | 15 LEDs max at the front, Symbols to be defined |
| Operating Voltage | 8-36 VDC |
| Operating Current |
900mA at 8V, 0mA at 36V (all LED's and Backlight on) |
| Key off Current | without clock option 0 mA; with clock option <2 mA |
| Front Foil | Chemical and UV resistant polyester foil |
| Display Window | Polycarbonate screen |
| Case Material | PC-ABS blend, black color |
