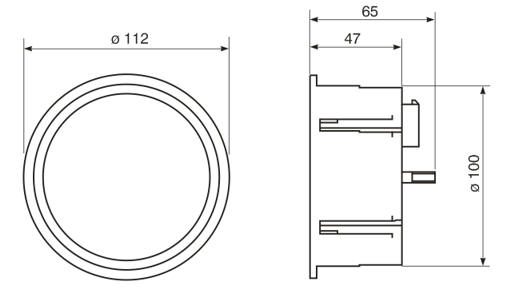

LCD MULTICONTROLLER INSTRUMENT Ø 100


LEGEND




02.01b18.jpg 02.01b20.jpg

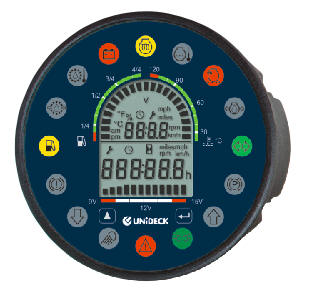

  Front Design LEDs-ON
with buttons and clock

FEATURES

Connector AMP Tyco or Molex Fit
Display Window Anti scratch resistant Polycarbonate screen
Display Custom designed Display available
LED Symbols Custom designed Symbols available
Clock Real time clock for time and signal service
Buttons For clock setting and/or display mode switch
Buzzer Loudness > = 85 dB
Output Two 2A relays
Communication Digital / Analog in / out
CAN Interface; CAN Open or SAE J1939 protocol

TECHNICAL DATA

Fixing metal strap with two nuts or four fixing clamps
IP Rating Front IP67
IP Rating Rear IP65 Tyco Super Seal
Operating
Temperature
-40°C to +85°C
Storage
Temperature
 -40°C to +90°C
Humidity 95% RH (non-condensing)
Vibration SAE J1378 (20g, 10-80Hz) EN 60068-2-64
Shock SAE J1378 (55g, 9-13ms) EN 60068-2-27
EN 60068-2-29 (25g, 6ms)
ESD EN 12895, DIN 40839-1, EN 13309
Approbation CE
Display  TN - LCD with backlight
1 x 12 segment bar
- Battery state of charge
2 x 12 segment bargraph
- Temperature
- Fuel level
6 numeric digits Display, supports the following modes:
- Service [h]
- Hourmeter [h]
- Speed [km/h], [mph]
- [km],[miles]
- rpm
- Temperature [ C], [ F]
- Error codes
4 numeric digits, for the clock.Other functions on request
Case Material PC-ABS blend, black color
LED 16 LEDs max at the front; Customized symbols
Operating
Voltage
8-36 VDC
Operating
Current 330mA at 8V, 110mA at 36V (all LEDs and Backlight on)
Key Without clock 0mA; with clock <2mA
Front Foil Chemical and UV resistant polyester foil
Display Window Polycarbonate screen
