| DISPLAY | ||||
|
|
 |
 |
 |
 |

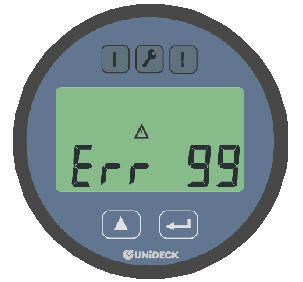

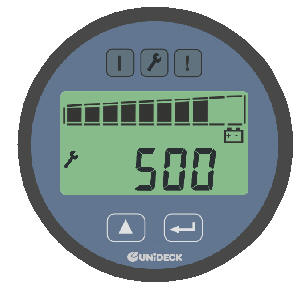

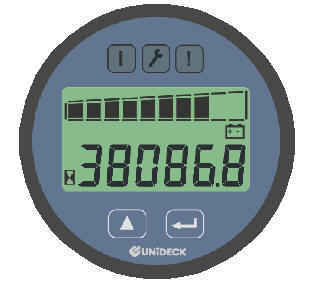

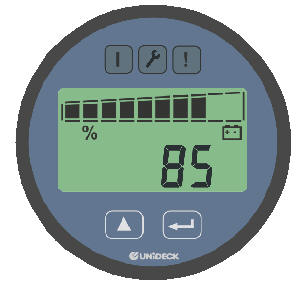

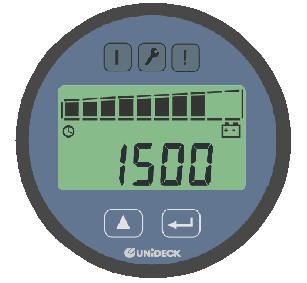

| Hourmeter and Battery State | Battery Status only | Next Service and Battery State | Current Failure | Duty Truck Hourmeter and Battery State |
FEATURES
| Connector | AMP Tyco (Other connectors on request) |
| Display Window | Anti scratch resistant Polycarbonate |
| Display | Custom designed Display available |
| LED Symbols | Custom designed Symbols available |
| Buttons | For clock setting and/or display mode switch |
| Communication |
Digital / Analog in / out CAN Interface; CAN Open or SAE J1939 protocol |
TECHNICAL DATA
| Fixing | metal strap with two nuts |
| IP Rating Front | IP67 |
| IP Rating Rear | IP65 |
| Connector | Tyco AMP connector 6 poles |
| Operating | |
| Temperature Storage | -40°C to +85°C |
| Temperature Humidity |
-40°C to +90°C 95% RH (non-condensing) |
| Vibration | EN 60068-2-64 (1g, 10-500Hz)SAE J1378 (20g, 10-80Hz) |
| Temperature Shock |
EN 60068-2-27 (30g, 18ms), EN
60068-2-29 (25g, 6ms) SAE J1378 (55g, 9-13ms) |
| ESD | EN 12895, DIN 40839-1, EN 13309 |
| Approbation | CE |
| Display |
TN - LCD with backlight 10 segment bargraph - Battery state of charge 6 numeric digits Display, supports the following modes: - Truck hour meter - Duty truck hour meter - Next truck service - Battery state of charge [%] - Current Failure |
| LED |
3 LEDs max at the front, Custom
designed Symbols available |
| Operating Voltage | 24 VDC Range: 8 28 VDC |
| Front Foil | Chemical and UV resistant polyester foil |
