CSC TYPE

STEERING COLUMN HUB CONE 1 WITH 2 CONTACT
AVAILABLE WITH DIAMETER 38 - 40 - 45 mm.



ؠ 38
L CODE
775 CSC0112775
715 CSC0112715
670 CSC0112670
650 CSC0112650
600 CSC0112600
550 CSC0112550
520 CSC0112520
500 CSC0112500
450 CSC0112450
400 CSC0112400
350 CSC0112350
300 CSC0112300
270 CSC0112270
250 CSC0112250
230 CSC0112230
200 CSC0112200
165 CSC0112165
125 CSC0112125

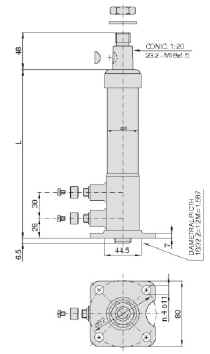

ؠ 40
L CODE
775 CSC2112775
715 CSC2112715
670 CSC2112670
650 CSC2112650
600 CSC2112600
550 CSC2112550
520 CSC2112520
500 CSC2112500
450 CSC2112450
400 CSC2112400
350 CSC2112350
300 CSC2112300
270 CSC2112270
250 CSC2112250
230 CSC2112230
200 CSC2112200
165 CSC2112165
125 CSC2112125

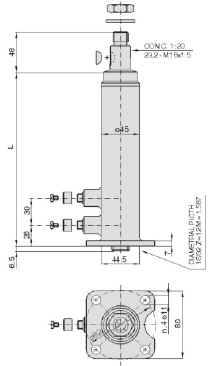

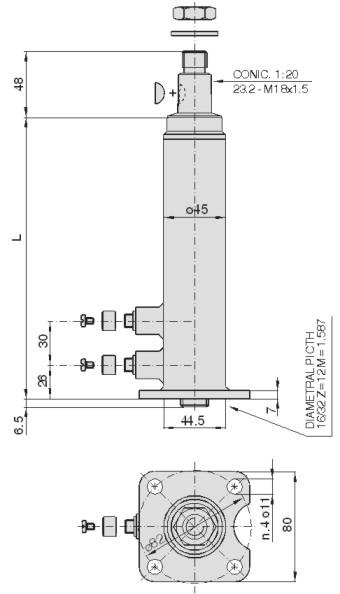

ؠ 45
L CODE
775 CSC1112775
715 CSC1112715
670 CSC1112670
650 CSC1112650
600 CSC1112600
550 CSC1112550
520 CSC1112520
500 CSC1112500
450 CSC1112450
400 CSC1112400
350 CSC1112350
300 CSC1112300
270 CSC1112270
250 CSC1112250
230 CSC1112230
200 CSC1112200
165 CSC1112165
125 CSC1112125
