AEROLITE

 LIGHT BARS 4 MUDULE ROTATING

 ACCORDING TO:





INDEX FOR APPLICATION

AEROLITE

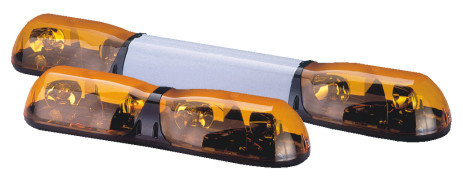

THE LIGHTBAR RANGE
Features within range

-Styled light range, designed and manufactured by world quality standards. Tough, lightweight and aeroidynamic.
-Suitable for all types of cars, van, trucks, agricultural and construction vehicles.
-Included in the range are a selection of rotating module light bars, approved to ECE Reg.65, and xenon version.
-All lightbars comply with the USA requirements of SAE J845 Class2 (Excluding xenon)
-Electro magnetic campatibily: All lightbars are approved to EEC95/57 & 89/336/EEC. In addition all non Reg.65 approved lightbars
are approved to EEC Durective 97/24 Chapter 8 & ECE Regulation 10.
-Optimised beam pattern for enhanced visibility.
-Dust and Water-proof to IP56.
-Dual voltage capability (bulb change required). Not 4 module ECE Reg.65 version.
-Sign Plate option available on a wide range of Lightbars (White to from, Red to rear when illuminated)
-A standard range of signs are avaiable. Custom sign available subject to quotation.
-Impact resistant polycarbonate lens, with stainless steel lens fixing screws.
-Additional reflector mirrors are fitted as standard for enhanced visibility.
-4 bolt fixing kit with adjustable width settings dependant on length of the bar.

ROTATING
-2 module currant draw =9.2A @ 12V and 6.0A @ 24V
-4 module currant draw =18.4A @ 12V and 12.0 @ 24V
-Rotating modules - Nominal 160 RPM +/- 20 flash rate.
XENON
-Xenon lightbars are 12/24V dual voltage capable.
-2 module currant draw =1.4A @ 12V and 0.8A @ 24V
-4 module currant draw =2.8A @ 12V and 1.6A @ 24V
-Xenon module - Nominal 70 +/- flashes per minute

TECHNICAL INFORMATION LIGHTBARS
Every warning lightbar shall be so mounted on the vehicle that the centre of the lamp is at a height not less than 1200 mm. above the ground.
The light shown from the lightbar(s) shall be visible from any point at a reasonable distance from the vehicle or any trailer being drawn by it. Amber is the ONLY permitted colour unless an emergency services vehicle (blue) or registered GMC medical practitioner (green).
The lightbar base should be parallel with the ground and fitted to the flattest part of the vehicle roof, on the longitudinal centre line across the vehicle.
When fitting a lightbar to a vehicle with Radio equipment, the distance to the aerial should not be less than 500mm.
It is good pratice to route product supply cables away from sensitive cables (e.g. radio, aerials, anti-lock braking systems etc). If this is not possible, cross cables at right angles.
CAUTION
Observe current consumption and choose cable, relay, switch and fuse as required. Disconnect from battery before wiring up.
Allow 5 minutes after disconnecting supply from a Xenon Lightbar before touching any wiring or internal pert-high voltage are generated and stored within these units. Do not touch bulb or tube glass with bare fingers. Do not over-tighten lens fixing screws.
2_small.jpg 1_small.jpg

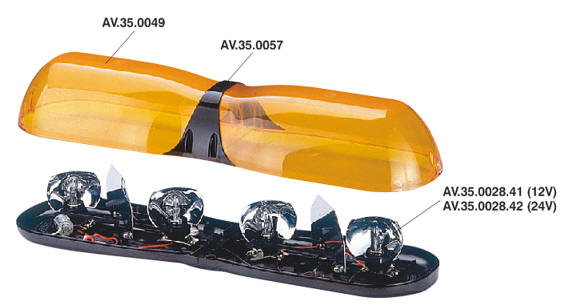

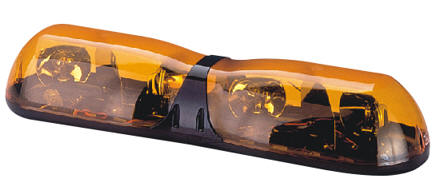

12V
4 MODULES

24V
4 MODULES

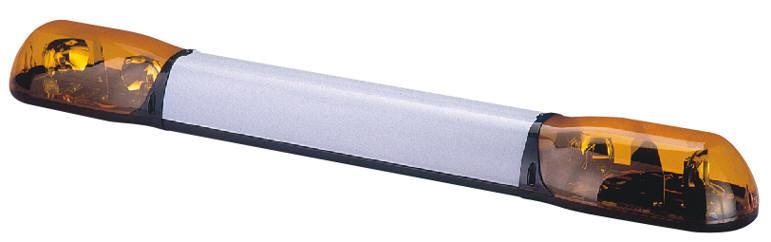

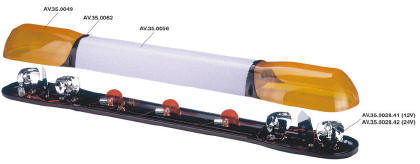

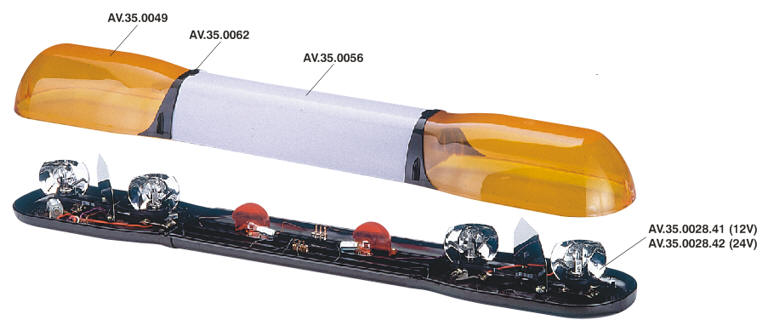

12V
4 MODULES
24V
4 MODULES

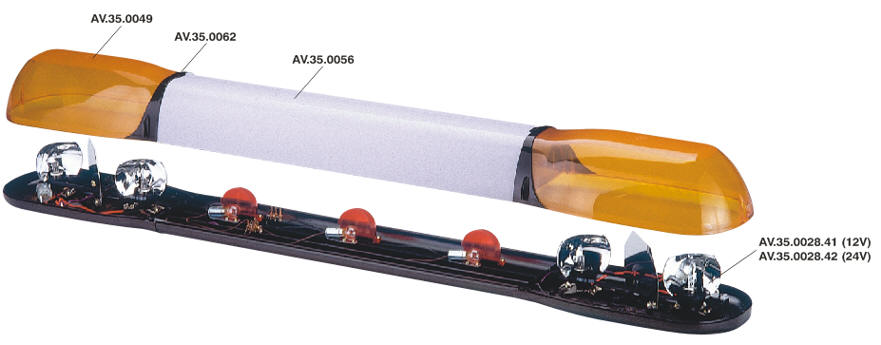

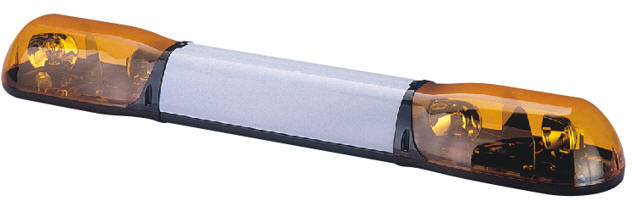

12V
4 MODULES
24V
4 MODULES
