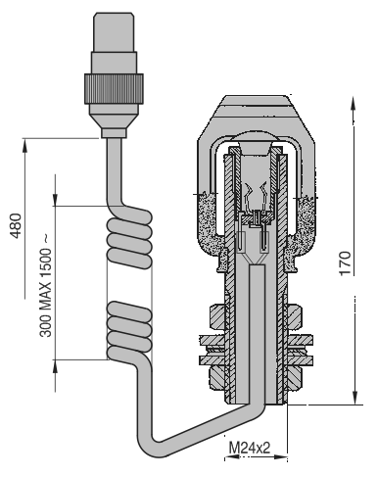

 FIXING KIT WITH MAGNETIC BASE
35116200_small.gif 35116200_small.jpg 35116200_small.jpg

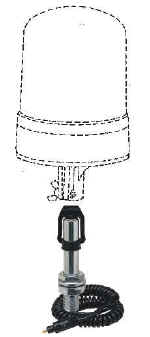

 FIXING KIT WITH TUBOLAR PLUG-IN
35112200_small.gif 35112200_small.jpg 35112200_small.jpg

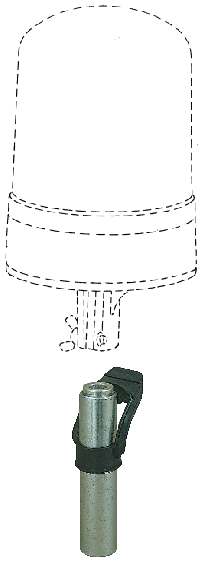

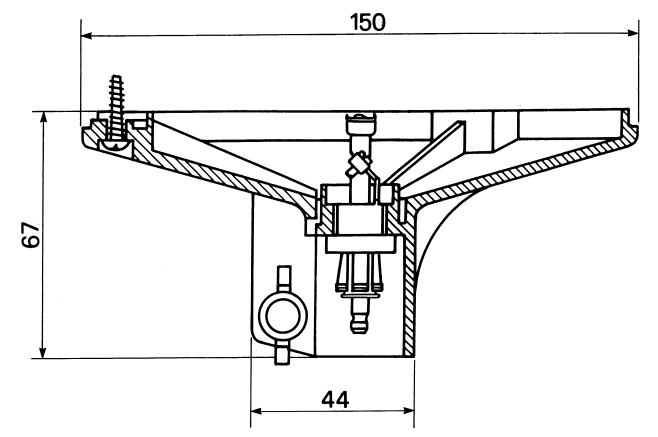

 FIXING KIT WITH TUBOLAR PLUG-IN
35001430_small.gif 35001430_small.jpg 35001430_small.jpg

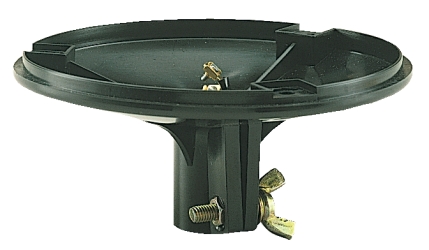

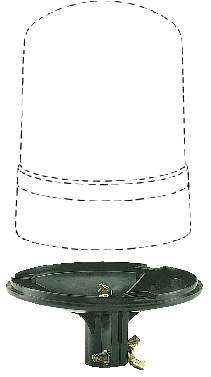

 CENTRAL FIXING KIT
35122200_small.gif 35001430_small.jpg 35001430.jpg (8623 byte)

 FIXING KIT WITH SELF-SCREW
35106200_small.gif 35106200_small.jpg 35106200_small.jpg

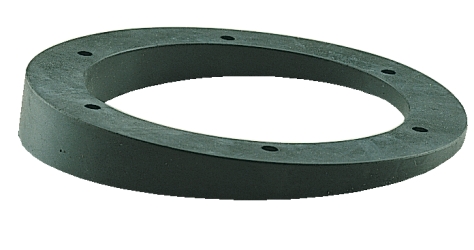

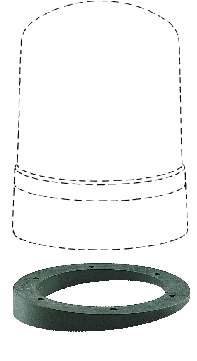

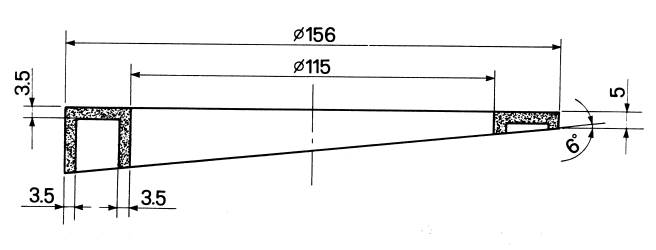

 TAPERED RUBBER SPACER
35001010_small.gif 35001010_small.jpg 35001010_small.jpg

 FLEXIBLE BASE
02.01b5.jpg 02.01b63.gif 02.01b64.jpg

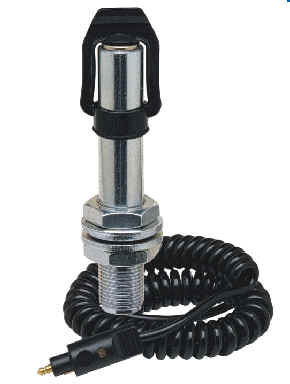

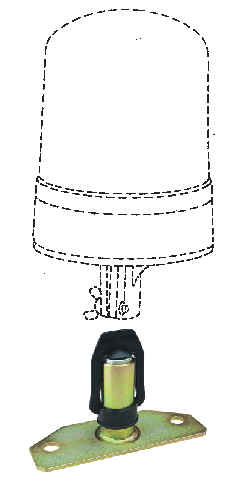

 SOCKET
35001420_small.gif 35001420_small.jpg 35001420_small.jpg

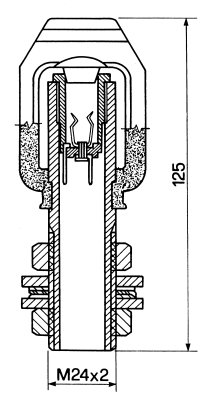

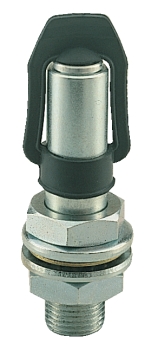

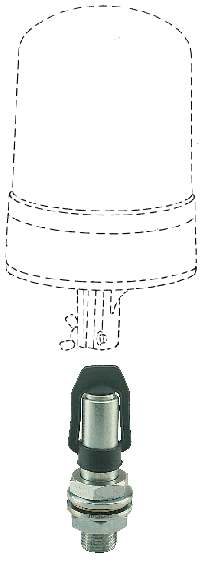

 SOCKET
35001520_small.gif 35001520_small.jpg 35001520_small.jpg

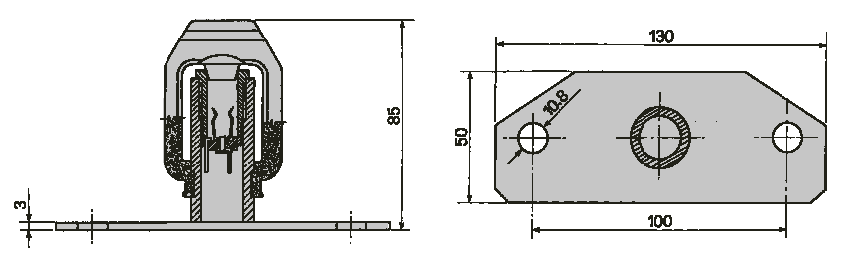

 SOCKET
02.01b56.jpg 02.01b26.gif 02.01b58.jpg

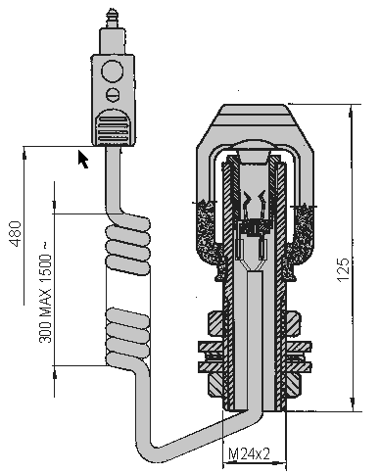

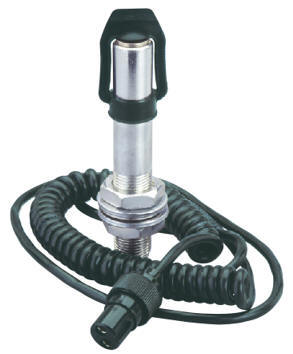

 SOCKET
02.01b9.jpg 02.01b24.gif 02.01b58.jpg

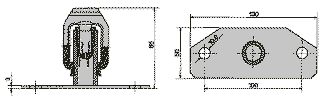

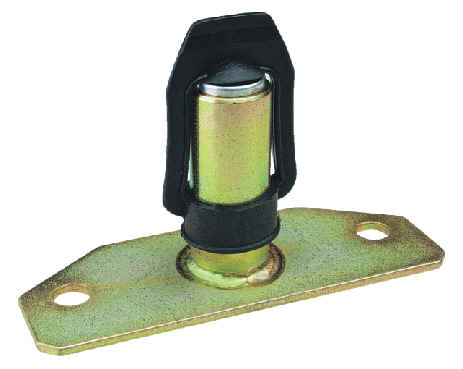

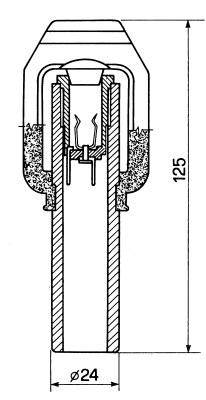

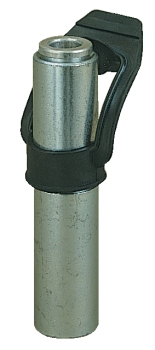

 TUBOLAR PLUG-IN
02.01b60.jpg 02.01b61.gif 02.01b59.jpg

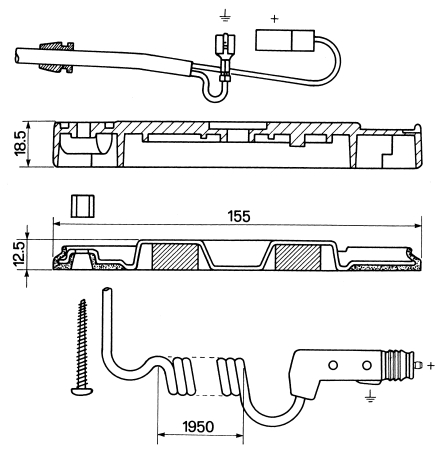

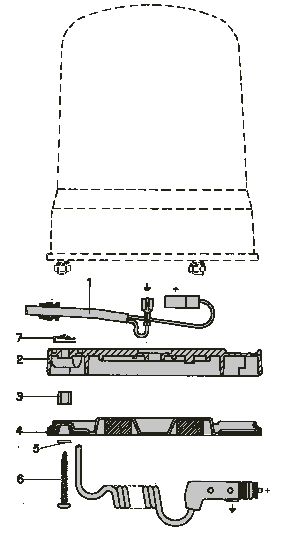

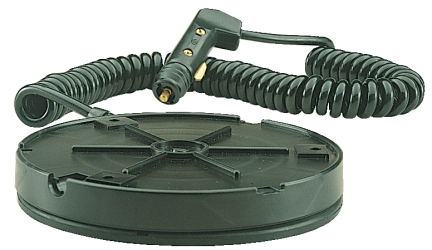

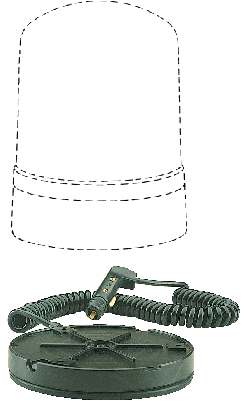

35116200.jpg FIXING KIT WITH MAGNETIC BASE



I
1 CABLE UNIT
2 ADAPTOR
3 SPACER
4 MAGNETIC BASE
5 WASHER
6 SCREW
7 SPRING		 ASSEMBLING INSTRUCTION
DISASSEMBLE THE EXISTING BASE FROM THE BEACON.
CONNECT THE CABLES + AND (POS. AND NEG.)
EXACTLY IN THE ALREADY EXISTING CONTACTS. FIX THE
ADAPTOR AND THE MAGNETIC BASE TO THE BEACON WITH
RELEVANT SCREWS, WASHERS, SPACERS AND SPRINGS,
TAKING CARE TO TIGHTEN PERFECTLY THE SCREWS TO AVOLD
INFILTRATION.

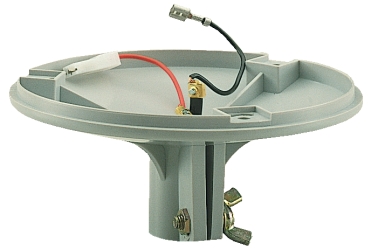

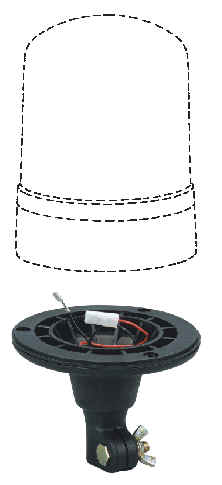

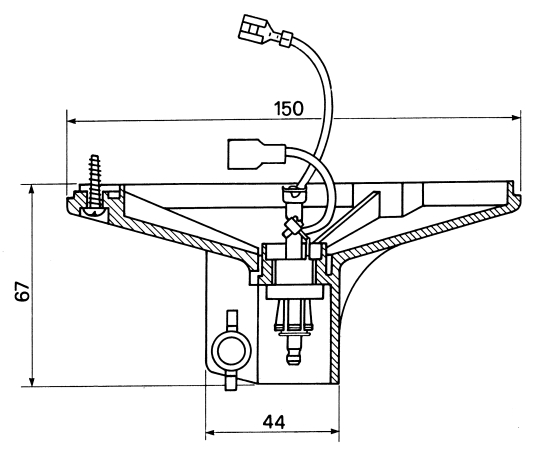

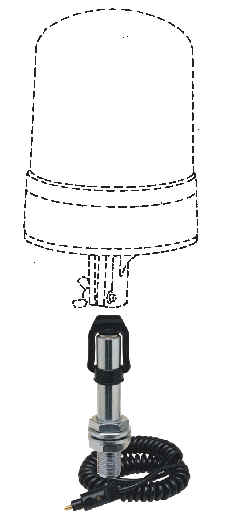

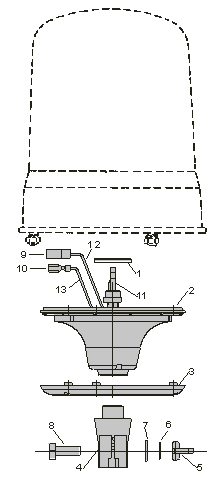

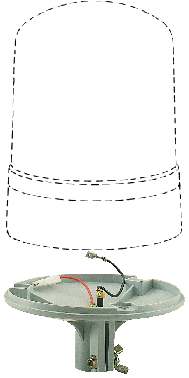

35112200.jpg FIXING KIT WITH TUBOLAR PLUG-IN
1 SPRING
2 SCEW
3 SUBBASE
4 PLUG
5 TAB SREW - NUT M6 - CUP WASHER - PLAIN WASHER
6 FEMALE TERMINAL LUG COVER
7 FEMALE TERMINAL
8 BLACK CABLE
9 RED CABLE		 ASSEMBLING INSTRUCTION
TAKE THE SUBBASE AND THE SCREW OF THE BEACON OFF.
CONNECT THE CABLES + AND (POS. AND NEG.)
EXACTLY IN THE ALREADY EXISTING CONTACTS. FIX THE BASE
WITH THE RELEVANT SCREW AND SPRING TO THE LAMP,
TAKING CARE TO TIGHTEN PERFECTLY THE SCREWS TO AVOID
ANY INFILTRATION.
ASSEMBLE THE BEACON ON THE VEHICLE IN THE DESIDERED
POSITION WITH THE TUBOLAR SUPPORT 35.001.420.

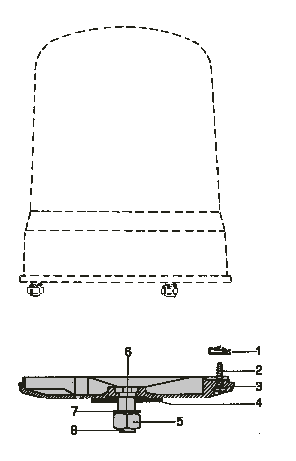

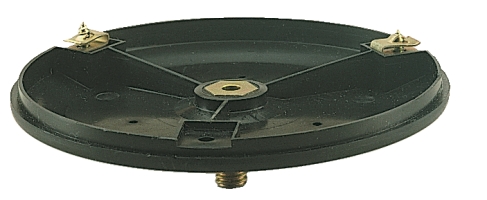

35122200.jpg CENTRAL FIXING KIT
1 SPRING
2 SCREW
3 SUBBASE
4 GASKET
5 NUT M12
6 GROMMET
7 WASHER
8 SCREW
 ASSEMBLING INSTRUCTIONS
TAKE THE SUBBASE AND SCREW OF THE BEACON OFF.
MAKE A HOLE OF DIAMETER 13 MM IN THE REQUESTED
POSITION ON THE VEHICLE, ON WHICH YOU WANT TO SET UP
THE LAMP. THEN FIX EVERYTHING BY A NUT (5) TAKING CARE
TO ASSEMBLE EITHER THE GASKET AND THE WASHER
CORRECTLY IN ORDER TO AVOID ANY INFILTRATION.

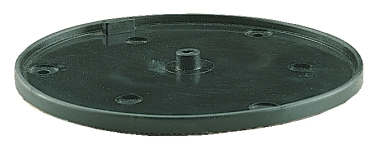

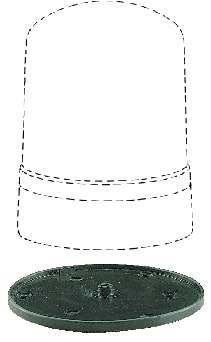

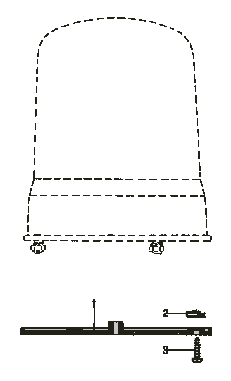

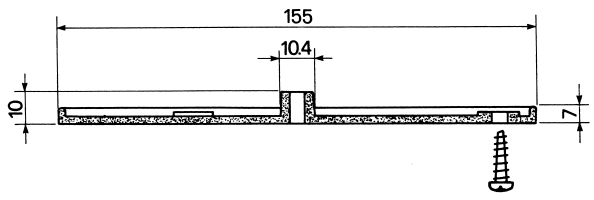

35106200.jpg FIXING KIT WITH SELF-TAPPING-SCREW
1 GASKET
2 SPRING
3 SCREW 		 ASSEMBLING INSTRUCTION
MAKE THE APPLICATION DRILLING ON THE VEHICLE ON WHICH YOU WANT TO SET UP THE LAMP. FIX LAMP WITH RESPECTIVE SCREW THE TAKING CAR TO TIGHTEN THE SCREWS PERFECTLY IN ORDER TO AVOID ANY INFILTRATIONS.

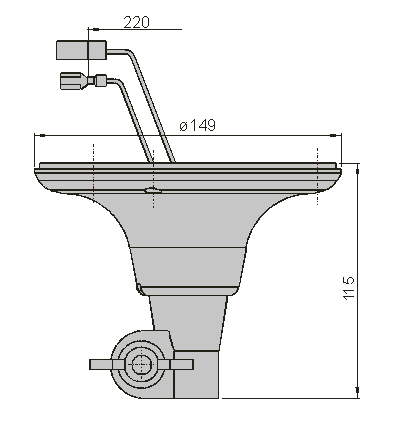

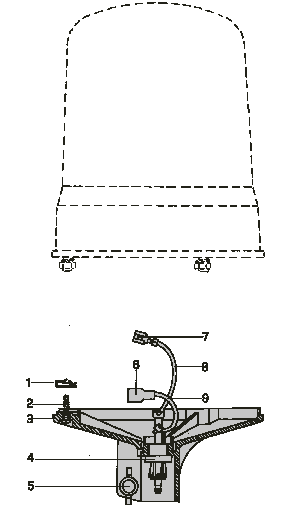

35408300.jpg FIXING KIT FOR FLEXIBLE BASE
1 SEGER RING
2 RUBBER FLEXIBLE BASE
3 FRAME
4 SLEEVE
5 WING NUT
6 TOOTHED LOCK WASHER
7 PLAIN WASHER
8 HEXAGONAL HEAD M10 SCREW
9 FEMALE TERMINAL LUG COVER
10 FEMALE TERMINAL
11 PLUG
12 RED CABLE
13 BLACK CABLE



 ASSEMBLING INSTRUCTION
TAKE THE SUBBASE AND THE SCREW OF THE BEACON OFF.
CONNECT THE CABLES + AND (POS. AND NEG.)
EXACTLY IN THE ALREADY EXISTING CONTACTS. FIX THE BASE
WITH THE RELEVANT SCREW AND SPRING TO THE LAMP,
TAKING CARE TO TIGHTEN PERFECTLY THE SCREWS TO AVOID
ANY INFILTRATION.
ASSEMBLE THE BEACON ON THE VEHICLE IN THE DESIDERED
POSITION WITH THE TUBOLAR SUPPORT 35.001.420.

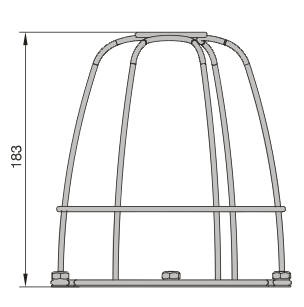

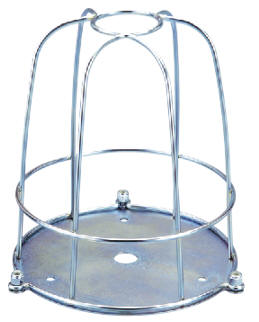

 PROTECTION GRID
