Voltage Converters

More and more auxiliary accessories such asSatellite Navigators RadiosIntegrated mobile systems etc., all products that are available only with 12V operating voltage,
together with a higher diffusion of electrical vehiclesFORK LIFTSGOLF CARSAIRPORT VEHICLESELECTRICAL CARS FOR CITY CENTERS or limited traffic areas
for combustion engines, lead to an increasing requirement of voltage converters to ensure a correct and safe operating of such devices. Using a voltage converter is
essential to maintain the lighting intensity constant, independently from battery charge level. Solutions such as battery tapping to supply auxiliary equipments are not
allowed by the EU regulations. Our range of very compact design DC/DC voltage converters, available with different fixing solutions, is capable to satisfy all requirements.

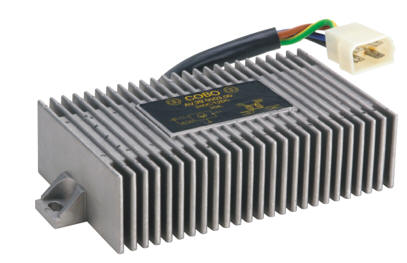

24  AV39001.gif 12 VOLT



TECHNICAL DATA
PEAK POWER RATING  40W
INPUT VOLTAGES AVAILABLE 19/30V
OUTPUT VOLTAGE  13.2V
CURRENT LOAD LIMIT   3.5A
NOMINAL CURRENT OUTPUT (1 HR. RATING) 3A
STAND-BY CURRENT 100mA WITHOUT CONTACT
1mA WITH CONTACT
OUTPUT VOLTAGE REGULATION  +/- 1.5V
OUTPUT SHORT CIRCUIT PROTECTION  SI
INPUT REVERSE POLARITY PROTECTION  SI
WEIGHT  1.130 Kg
SIZE 176mm x 97mm x 42mm
AMBIENT OPERATING TEMPERATURE RANGE -30°C ÷ +60°C
STORAGE TEMPERATURE  -40    +85°C
ENVIRONMENT PROTECTION  IP65
SHOCK AND VIBRATION  JIS 1601 CLASSE 3


FEATURES: Our devices are available with two technologies:

- LINEAR - More simple and economical. Available for voltages from 24V -12V (Carriers) max 3 AMP
- SWITCHING - More efficient and therefore with less cooling requirements.
Available for voltages from 48/80 V - 24V (Electrical Vehicles) and 24V - 12V (Carriers) from 3 to 10 AMP.
Compact dimensions allow very easy installation in reduced spaces. Over 80% efficiency ensures a high security margin (buffer) and improves performances through low
heat presence. Thanks to built-in technology that reduces overheating, our devices don't need particular installation requirements for heat dispersion.
To optimize performances, output voltage is controlled with a max deviation of +/- 1.5V
Accurate project care for each single component result in a light, compact and very quiet device.
