Voltage Converters
More and
more auxiliary accessories such asSatellite Navigators RadiosIntegrated
mobile systems etc., all products that are available only with 12V operating
voltage,
together with a higher diffusion of electrical vehiclesFORK LIFTSGOLF CARSAIRPORT
VEHICLESELECTRICAL CARS FOR CITY CENTERS or limited traffic areas
for combustion engines, lead to an increasing requirement of voltage converters
to ensure a correct and safe operating of such devices. Using a voltage
converter is
essential to maintain the lighting intensity constant, independently from
battery charge level. Solutions such as battery tapping to supply auxiliary
equipments are not
allowed by the EU regulations. Our range of very compact design DC/DC voltage
converters, available with different fixing solutions, is capable to satisfy all
requirements.
|
|
|
|
12 VOLT
| TECHNICAL DATA | |
| PEAK POWER RATING | 130W |
| NOMINAL POWER RATING | 100W |
| FREQUENCY | 52kHz |
| INPUT VOLTAGES AVAILABLE | 18/32V |
| OUTPUT VOLTAGE | 13.5V |
| CURRENT LOAD LIMIT | 12V 10A |
| NOMINAL CURRENT OUTPUT (1 HR. RATING) | 7.5A |
| OUTPUT VOLTAGE REGULATION | +/- 1V |
| OUTPUT VOLTAGE RIPPLE | < 2.5% |
| OUTPUT SHORT CIRCUIT PROTECTION | SI |
| INPUT REVERSE POLARITY PROTECTION | SI |
| EFFICIENCY | > 80% |
| WEIGHT | 0.600 Kg |

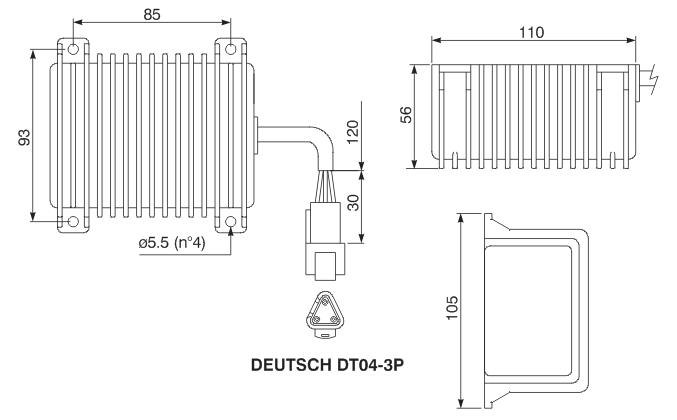

| SIZE | 110mm x 105mm x 56mm |
| THERMAL PROTECTION | SI |
| AMBIENT OPERATING TEMPERATURE RANGE | -30°C ÷ +60°C |
| STORAGE TEMPERATURE | -40°C ÷ +85°C |
| ENVIRONMENT PROTECTION | IP65 |
| EMC SPECIFICATION | European Specification 95/54 EEC |
FEATURES:
Our devices are available with two technologies:
- LINEAR - More simple and economical. Available for voltages from 24V -12V (Carriers)
max 3 AMP
- SWITCHING - More efficient and therefore with less cooling requirements.
Available for voltages from 48/80 V - 24V (Electrical Vehicles) and 24V - 12V (Carriers)
from 3 to 10 AMP.
Compact dimensions allow very easy installation in reduced spaces. Over 80%
efficiency ensures a high security margin (buffer) and improves performances
through low
heat presence. Thanks to built-in technology that reduces overheating, our
devices don't need particular installation requirements for heat dispersion.
To optimize performances, output voltage is controlled with a max deviation of
+/- 1.5V
Accurate project care for each single component result in a light, compact and
very quiet device.
