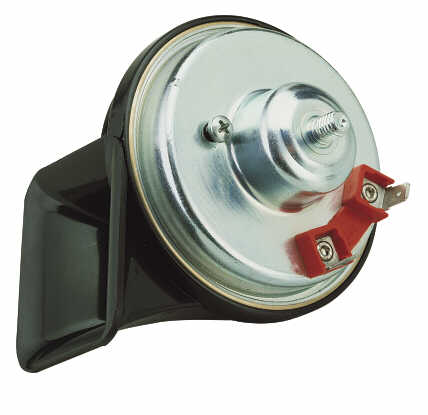

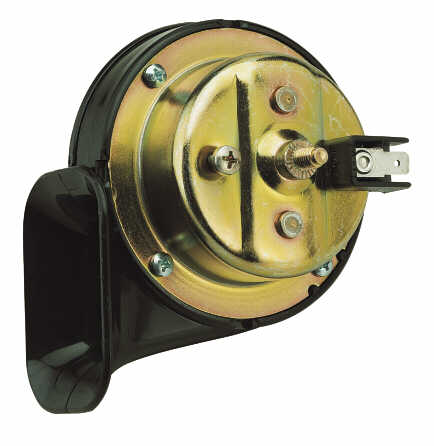

ELECTROMAGNETIC HORN BODY MADE BY ZINC PLATED IRON SHEET SPEAKER MADE BY "ABS"
-SUPPLY CURRENT 2,5 A
-SOUND LEVEL > 112 dB
-OPERATING TEMPERATURE -40° C ÷85° C
-INSULATION RESISTANCE 5 MW
|
|
|
| TYPE A | TYPE B |
| PN | VOLTAGE | TYPE A | TYPE B | OPERATING FREQUENCY 490 Hz 5% | OPERATING FREQUENCY 420 Hz 5% |
| AV.31.0081.41 | 12 V | X | X | ||
| AV.31.0081.42 | 24 V | X | X | ||
| AV.31.0082.41 | 12 V | X | X | ||
| AV.31.0082.42 | 24 V | X | X | ||
| AV.31.0083.41 | 12 V | X | X | ||
| AV.31.0083.41 | 12 V | X | X |
