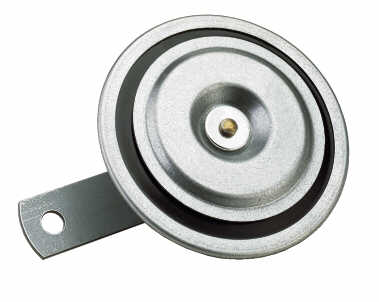

HORN BODY AND DISC MADE BY ZINC PLATED IRON SHEET
-SUPPLY CURRENT 4 A
-SOUND LEVEL > 110 dB
-OPERATING TEMPERATURE -40° C ÷85° C
-INSULATION RESISANCE 10 MW
|
|
|
| TYPE A | TYPE B |
| PN | VOLTAGE | TYPE A | TYPE B | OPERATING FREQUENCY 450 Hz 5% | OPERATING FREQUENCY 335 Hz 5% |
| AV.31.0075.41 | 12 V | X | X | ||
| AV.31.0076.41 | 12 V | X | X | ||
| AV.31.0077.41 | 12 V | X | X | ||
| AV.31.0075.42 | 24 V | X | X | ||
| AV.31.0078.41 | 12 V | X | X | ||
| AV.31.0078.42 | 24 V | X | X | ||
| AV.31.0079.01 | 36 V | X | X | ||
| AV.31.0080.01 | 48 V | X | X | ||
| AV.31.0085.01 | 12 V | X | X |
