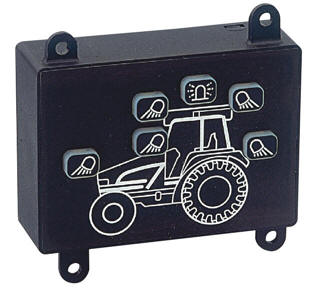

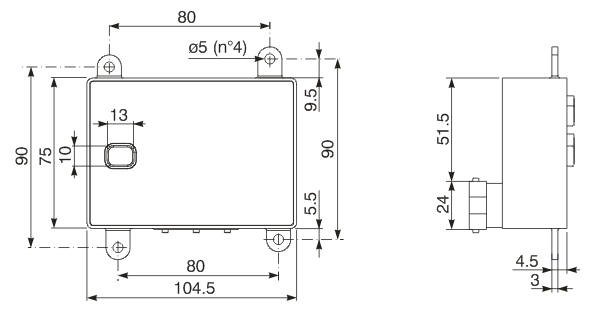

WORKLAMP IGNITION - BEACON - CONTROLLER
-SWITCHES MADE BY "CARBON SWITCH TECHNOLOGY.
SILICON RUBBER BUTTONS WITH RETROLIGHTED
SYMBOLS AT THE MOMENT OF THE EXTERNAL LIGHTS IGNITION.
-LIGHTED BUTTONS WITH WORKING FUNCTION.
-WORKING TEMPERATURE: -40°C +85°C (-40°F +185°F)
-SEALING: IP 64
| PN | FUNCTION | POWER SUPPLY |
ABSORBED CURRENT |

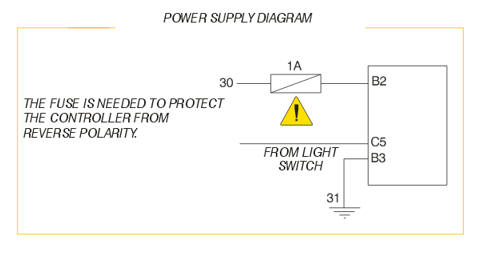

CONNECTION BOARD | WIRING DIAGRAM |
| 34.0053.0000 |
 |
9 V -16 V |
STAND - BY 300microA |
 |
B1
ROTANTE-FLASH - BEACON SUPPLY INPUT B2 30 DIRECT POWER FROM BATTERY B3 31GROUND B4, B5 TO WORKLAMP FRONT UPPER (10A LOAD) B6 TO RELAY IX (10A LOAD) B7, B8 INTERMEDIATE (20A LOAD) C1 TO WORKLAMP REAR UPPER (10A LOAD) C2 BEACON SUPPLY OUT (10A LOAD) C3, C4 REAR WORKLAMP SUPPLY INPUT UPPER C5 S-LPS C6 TO RELAY X (100mA LOAD) C7, C8 FRONT UPPER E FRONT WORKLAMP SUPPLY INPUT INTERMEDIATE |
| 34.0054.0000 |
 |
9 V -16 V |
STAND - BY 300microA |
 |
B1
ROTANTE-FLASH - BEACON SUPPLY INPUT B2 30 DIRECT POWER FROM BATTERY B3 31 GROUND B4, B5 TO WORKLAMP FRONT UPPER (10A LOAD) B6 TO RELAY IX (10A LOAD) B7, B8 TO WORKLAMP FRONT INTERMEDIATE (20A LOAD) C1 TO WORKLAMP REAR UPPER (10A LOAD) C2 BEACON SUPPLY OUT (10A LOAD) C3, C4 REAR WORKLAMP SUPPLY INPUT UPPER C5 S-LPS C6 TO RELAY X (100mA LOAD) C7, C8 FRONT UPPER E FRONT WORKLAMP SUPPLY INPUT INTERMEDIATE |
