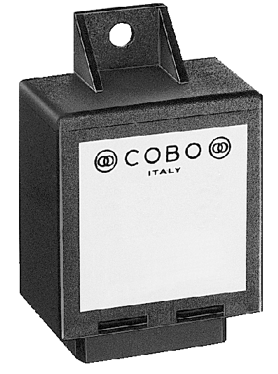

CAN-BUS ENGINES INTERFACE UNIT


WITH SAE J1939 PROTOCOL


PROTECTION IP53 AGAINST DUST AND WATER OPERATING TEMPERATURE: OPERETIVE: -0°C +80°C STOCKING: -40°C +85°C

INDEX BY APPLICATION

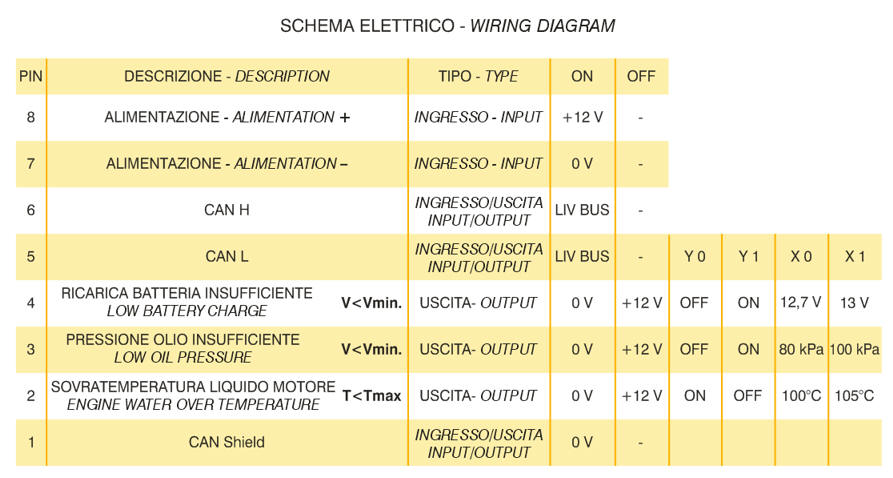

PN MAX LOAD RATED VOLTAGE WORKING VOLTAGE CONNECTION BOARD DIAGRAM
34.0028.0000 1 A 12 V 12 V wp6nfz3w_small.gif wphm4ejp_small.gif
