SAR LOAD MOMENT INDICATOR (L.M.I.)

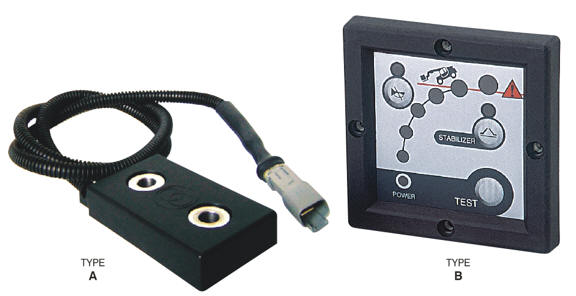

STRAIN GAGE SENSOR + LOAD MOMENT DISPLAY

STRAIN GAGE SENSOR: SEALING IP67

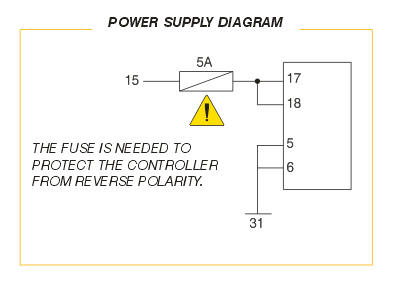

WORKING VOLTAGE 12V CC
LOAD MOMENT DISPLAY: POLICARBONATE SLIDE SEALING IP66


INDEX BY APPLICATION

SAR-BASIC
It is the ideal solution for monitoring stability. It is reliable and with ease of installation. The control system comes
with factory set parameters which may be adjusted individual requirements using the calibration procedure.
In operating mode, the device measures in real time the change in rear axle load conditions, indicating to the
operator the progressive approach to the tilt point, which when reached will operate the automatic shut down (in
some versions).

FEATURES
- Sealing: IP67
- Operating temperatures: -20°C +85°C
- Double light intensity display for different ambient conditions
- Three security curves:
1) under normal (4 wheels) without stabilizers
2) with stabilizers
3) with man platform cage
- Dynamical sound alarm: acoustic alarm with variable frequency
- Diagnostic function: fast assessment of system malfunctions
- Stability auto-check: it automatically chooses the safest load curve for each working condition
- Test: checks if system is working properly
- Mute: partial limiting of the danger acoustic alarm
- Slow motion: slows the speed of the arm under hazardous conditions.

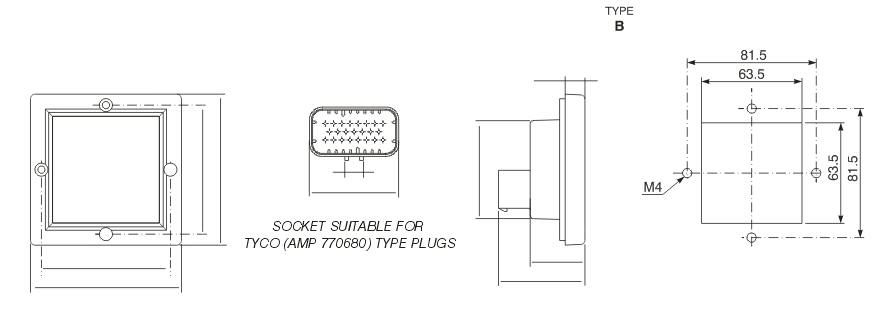

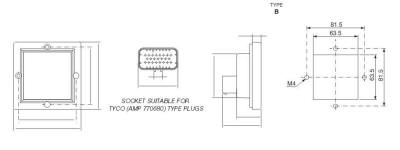

CONTROL UNIT
Featuring an aesthetically pleasing L.E.D. display, of a compact size, ergonomically positioned with ease of
installation in the cab. The device processes the signals coming from the strain gauge and it properly shows in
real time the longitudinal stability parameters of the vehicle. When the critical area is reached, the unit
simultaneously signals the operator the danger and will automatically activate the shutdown of power to
the hydraulics system.

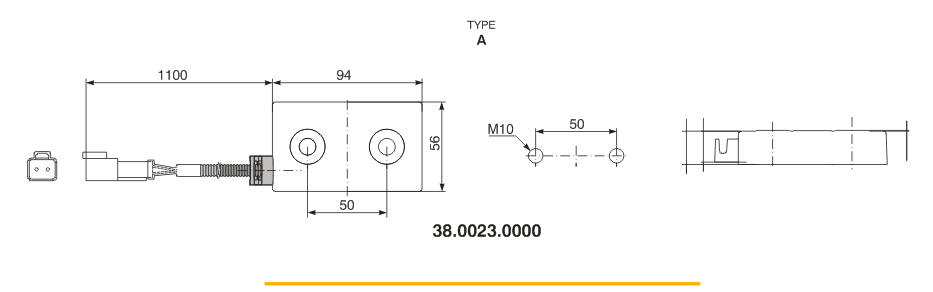

STRAIN GAGE SENSOR
Composed of a sensor placed on one of the two rear axles of the vehicle (usually the right side axle) indicating the
structural deformations caused by the load handling.




PN TYPE WORKING VOLTAGE CONNECTORS DISPLAY SENSOR FUNCTION
34.0027.0700 B 12 V CC wphgdfsn_small.gif wpq85lcx_small.gif 1
SENSOR
38.0023.0000
POWER
TEST
MUTE
34.0030.0600 B 12 V CC 34002735.jpg 34002737.jpg 1
SENSOR
38.0023.0000
POWER
TEST
34.0034.0600 B 12 V CC wpe3ao3e_small.gif wp0yije0_small.gif 1
SENSOR
38.0023.0000
POWER
TEST
MUTE
STABILIZZER
34.0049.0600 B 12 V CC 34002741.jpg 34002743.jpg 2
SENSOR
38.0023.0000
RH LH
POWER
TEST
MUTE
STABILIZZER
34.0037.0500 B 12 V CC wplg56vg_small.gif wpanafen_small.gif 1/2
SENSOR
38.0023.0000
POWER
TEST
MUTE
STABILIZZER
