BUZZER ASY-TURN INDICATOR





INDEX BY APPLICATION

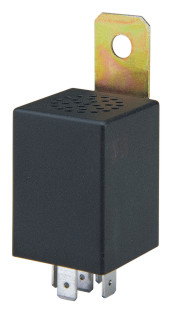

31025000_small.jpg  31025000_small1.jpg    31025000.jpg (9369 byte)

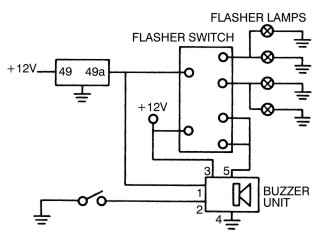

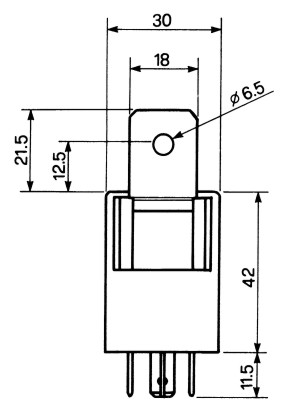

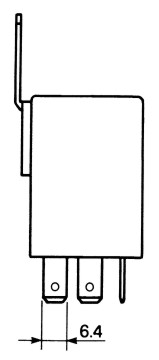

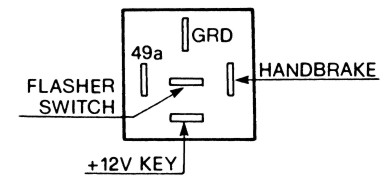

PN NOMINAL POWER SUPPLY ABSORBED CURRENT SOUND OUTPUTY SOUND FREQUENCY CONNECTION BOARD WIRING DIAGRAM
31.025.000 12 Vdc 88,2 mA -/+ 10%
@ Vcc  = 13,5 Vdc		 75DB A METRE @ SAEJ994
PHONOMETER MODE; FAST		 2048Hz -/+ 5% 31025000_small1.jpg 31025000_small.jpg

WORKING CHARACTERISTICS
Water and dust protection: IP30
Working and storage temperature:- 40° C / +85°C
Buzzer unit shall begin to sound in phase with the flasher unit after 28" -/+ 5%
Buzzer unit will sound continuosly with key switch on and handbrake pulled.
Handbrake is predominant on flasher unit.
