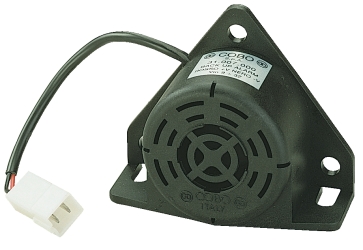

INTERMITTENT BACK UP ALARM
-PROTECTED AGAINST INCORRECT INSTALLATION
-PROTECTION AGAINST WATER AND DUST IP66
-OPERATING TEMPERATURE -20)
° C ÷ 85° C
| TYPE A | TYPE B | ||
 |
 |
 |
 |
 |
 |
| PN | TYPE A |
TYPE B |
TONE | MINIMUMSOUND
PRESSURE cm. 60 |

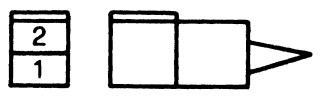

OPERATING FREQUENCY | CONNECTORS | VOLTAGE |
| 31.007.000 | x |  |
INTERMITTENT 1Hz ± 10% |
12 V - 95 dB | 2.200 Hz ± 10% |  AMP 280542.0 |
10 - 32 V |
| 31.021.000 | x | |
INTERMITTENT 1Hz ± 10% |
12 V - 95 dB | 2.200 Hz ± 10% |  DEUTSCH DT 04 |
10 - 32 V |
| 31.0031.0000 | |
x | INTERMITTENT 1Hz ± 10% |
12 V - 95 dB | 2.200 Hz ± 10% | DEUTSCH DT 04 |
10 - 32 V |
| 31.024.000 | x | |
INTERMITTENT 1Hz ± 10% |
12 V - 95 dB | 2.200 Hz ± 10% | AMP 280542.0 |
11 - 100 V |
| 31.030.000 | x | |
INTERMITTENT 1Hz ± 10% |
12 V - 95 dB | 2.200 Hz ± 10% | DEUTSCH DT 04 |
11 - 100 V |
| 31.026.000 | x | |
INTERMITTENT 1Hz ± 10% |
12 V - 95 dB | 2.200 Hz ± 10% |
 SUPER SEAL |
11 - 100 V |
