CIRCUIT FOR BISTABLE RELAYS
-MINIMUM DELAY AMONG SUBSEQUENT -
IGNITIONS 100msec.
-PROTECTED AGAINST SHORT CIRCUIT OF THE LOAD
-WORKING TEMPERATURE -40° C ÷ 80° C
-STORAGE TEMPERATURE -40° C ÷ 85° C

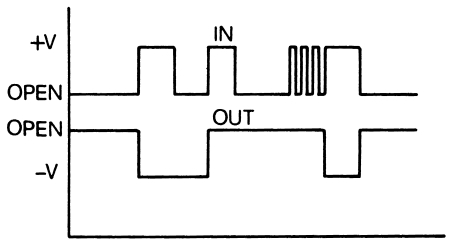

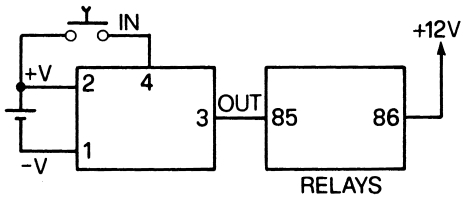

| PN | MAX SWITCHED CURRENT | DROP OUT DELAY | VOLTAGE | ABSORBED CURRENT | CONNECTION BOARD | CONNECTION DIAGRAM |
| 18.114.000 | 500 mA | - | 8 - 16 V | 20 mA |  |
 |
