TIMER
-MINIMUM DELAY AMONG SUBSEQUENT -
IGNITIONS 100msec.
-PROTECTED AGAINST INCORRENT INSTALLATION
-WORKING TEMPERATURE -40° C ÷ 85° C
-STORAGE TEMPERATURE -40° C ÷ 85° C

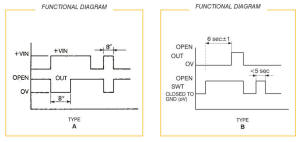

| PN | TYPE | MAX SWITCHED CURRENT | DROP OUT DELAY | VOLTAGE | ABSORBED CURRENT | CONNECTION BOARD | CONNECTION DIAGRAM |

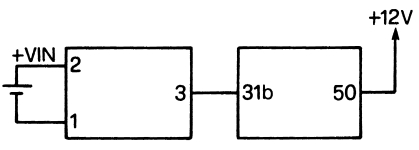

| 18.113.000 | A | 500 mA | 8 sec. 2 sec. | 8 - 16 V | 50 mA |  |
 |

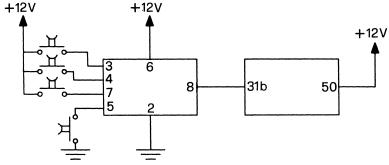

| 18.119.000 | A | 500 mA | 10 sec. 2 sec. | 8 - 16 V | 50 mA |  |
 |
| 18.0120.0000 | B | 500 mA | 6 sec. ± 1 sec. | 8 - 16 V | 10 mA |
 |
 |
