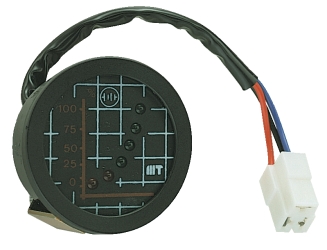

BATTERY CHARGE ELECTRONIC INDICATOR

-PROTECTION AGAINST DUST AND WATER ACCORDING TO  DIN 40050 IP53
-PROTECTED POLARITY
-ELECTRONIC CONNECTION DIRECTLY ON THE BATTERY SET
-WORKING TEMPERATURE -20°C ÷ 65°C

INDEX BY APPLICATION

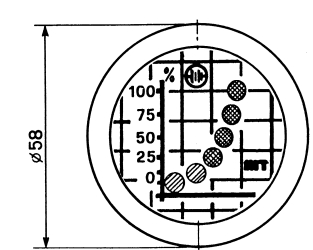

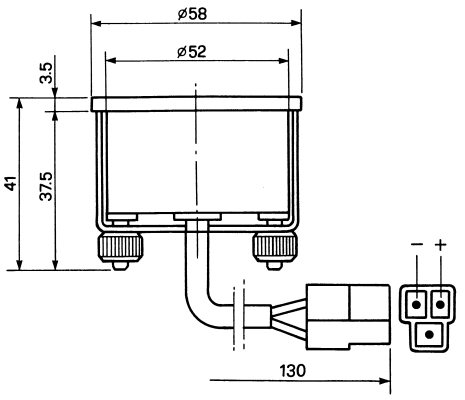

00550168eseguenti_small.jpg   00550168eseguenti_small.jpg




PN FEEDING VOLTAGE MAX LOAD AMPLIFER NOTES
0055.0168 12 V 5 W 0055 - 0228
0055.0178 24 V 5 W 0055 - 0227
0055.0179 36 V 5 W 0055 - 0227
0055.0180 48 V 5 W 0055 - 0226
0055.0181 72 V 5 W 0055 - 0226
0055.0182 80 V 5 W 0055 - 0226
