| WIRING DIAGRAM | MAXIMUM WORKING PRESSURE TABLE |
 |
 |
| P/N | DIMENSIONS | TECHNICAL CHARACTERISTIC | |

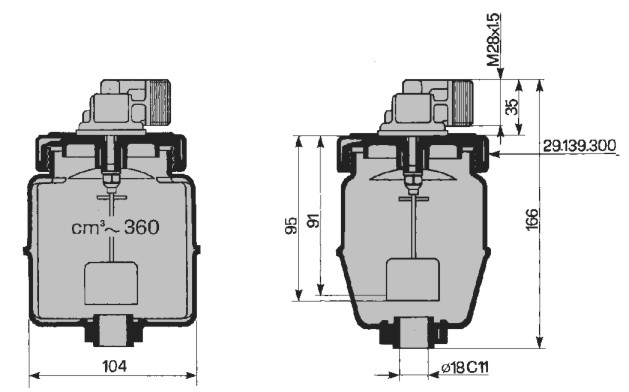

| 29.139.000 |
 |
TANK WITH LOW LEVEL CLUTCH AND BRAKES OIL INDICATOR CONTROL |
|
|
 |
||

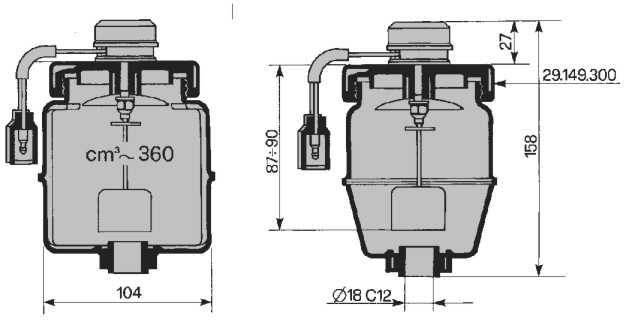

| 29.149.000 |  |
TANK WITH LOW LEVEL BRAKES OIL INDICATOR CONTROL |
|
|
|
||

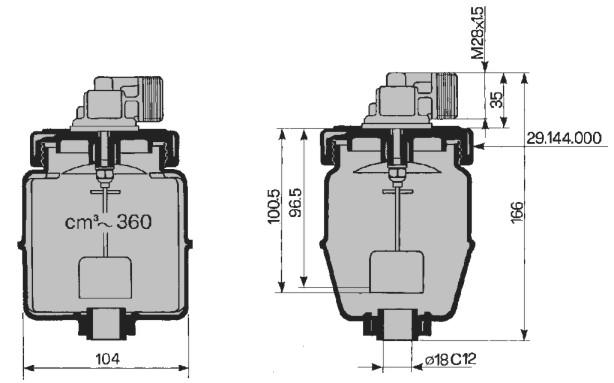

| 29.174.000 |  |
BRAKES OIL TANK |
|
|
|
||

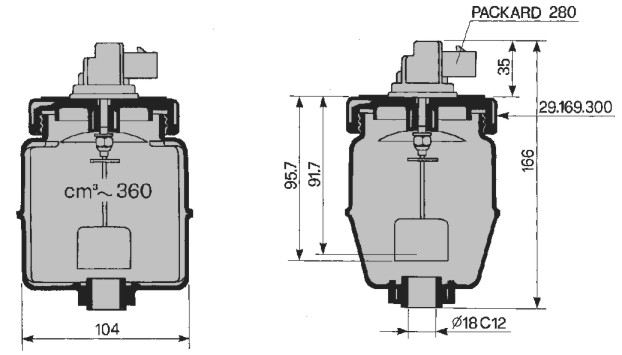

| 29.169.000 |  |
TANK WITH LOW LEVEL BRAKES OIL INDICATOR CONTROL |
|
|
|
||

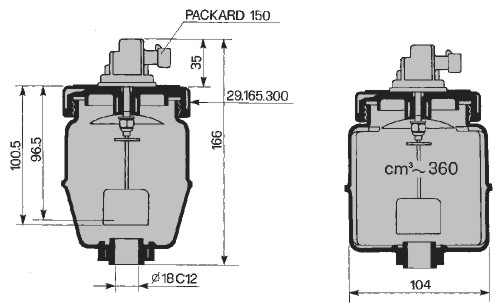

| 29.166.000 |  |
BRAKES OIL TANK |
|
|
|
||

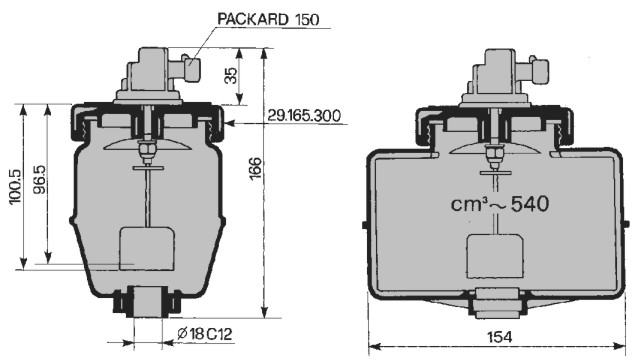

| 29.165.000 |  |
BRAKES OIL TANK |
|
|
|
||

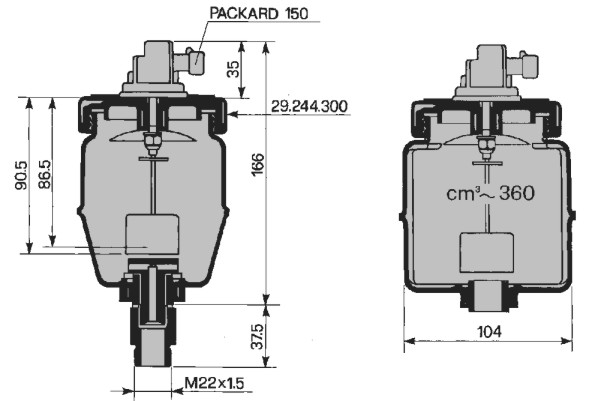

| 29.244.000 |  |
BRAKES OIL TANK |
|
|
|
||

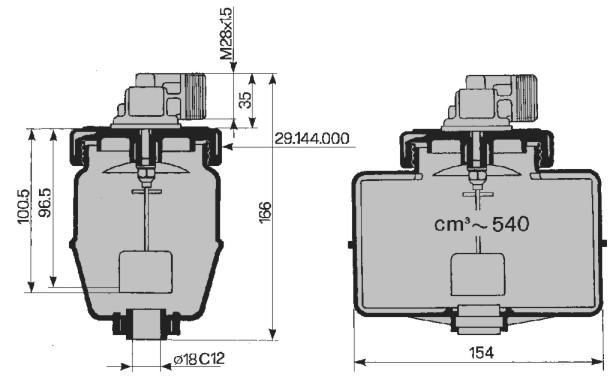

| 29.173.000 |  |
BRAKES OIL TANK |
|
|
|
||
