| 1 | 2 | 0 |  |
||
 |
 |
 |
|
SECURITY PUSH - PULL P.T.O. CONTROLS SWITCH. THE SWITCH HAS, ALSO, A EMERGENCY QUICK TURN OFF PUSSHING A MAIN KNOB. DESIGNED WITH THE "REED" TECNOLOGY THAT IS THE BEST FOR CONTROL OF ELECTRONIC UNITS WITH ELECTRICAL LOAD LESS THEN 10 mA. | |

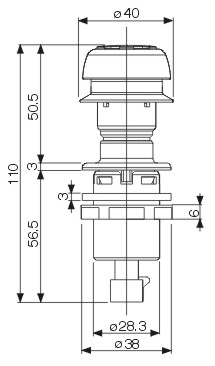

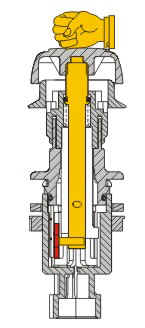

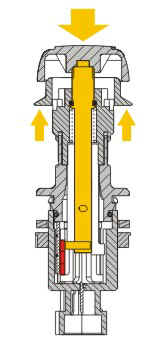

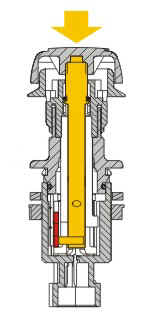

| MOMENTARY | MAINTAINED | MAINTAINED | SPECIFICATIONS: | ||
 |
 |
 |
RATING: 50 NA - 50 MA@5V CONTACT MECHANISM: ANY MECHANICAL CONTACTS REED RELAIS WITH MAGNET ELECTRICAL LIFE: 150.000 OPERATION MIN. AT FULL LOAD CONTACTS: REED SWITCHES |
SEALING: IP66 OPERATING TEMPERATURE RANGE: - 40° C TO 85° C ( -40° F TO 185° F ) MOUNTING MEANS: ON THE PANEL BY NYLON NUT |
|
 |
|||||
| WIRING DIAGRAM | CONNECTION BOARD | |||
 |
 |
 |
CONNECTORS
& CONTACTS TO BE SUPPLIED SEPARATELY
|
 |
