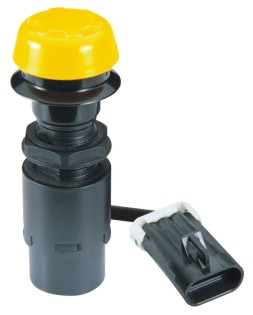

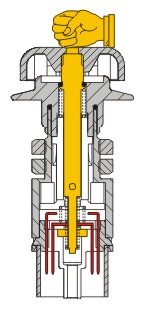

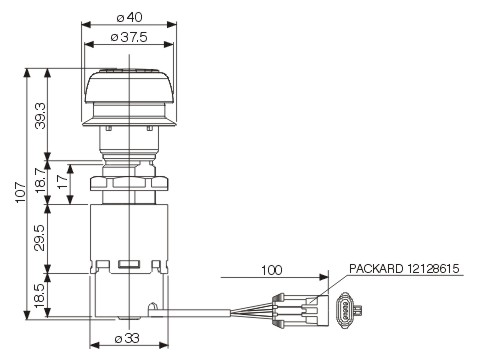

SECURITY PUSH-PULL P.T.O. CONTROLS SWITCH. THE SWITCH HAS, ALSO, A EMERGENCY QUICK TURN OFF PUSSHING A MAIN KNOB. THE RANGE OFFERS A VARIETY OF POPULAR ELETTRICAL CONNECTINS AND SEVERAL KIND OF SWITHING CIRCUITS. THE BRASS SILVER PLATED CONTACTS SWITCHES ACCEPT LOADS UP TO 3 Amp @ 12 V.- 1.5 Amp @24V. INDUCTIVE THE BRASS GOLD PLATED CONTACTS SWITCHES ACCEPT LOADS FROM 10 mA@ 12/24V. | |

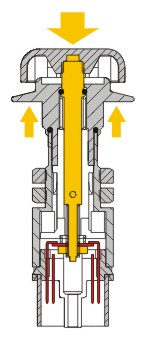

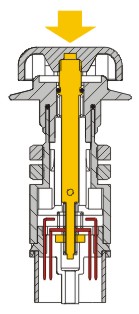

| MOMENTARY | MAINTAINED | MAINTAINED | SPECIFICATIONS: | ||
 |
 |
 |
RATING: 3 Amp IND. @ 12V - 1,5 Amp IND. @ 24V BRASS SILVER PLATED CONTACTS 10 MA @ 12/24V BRASS GOLD PLATED CONTACT ELECTRICAL LIFE: 150.000 OPERATION MIN. AT FULL LOAD CONTACT MATERIAL: BRASS SILVER OR GOLD PLATED |
SEALING: TOP END IP64 BOTTOM END IP43 OPERATING TEMPERATURE RANGE: - 40° C TO 85° C ( -40° F TO 185° F ) MOUNTING MEANS: ON THE PANEL BY NYLON NUT |
|
 |
|||||
| WIRING DIAGRAM | CONNECTION BOARD | ||
 |
 |
 |
 |
