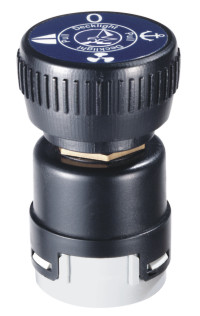

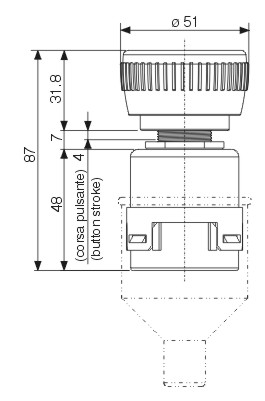

| THE ROTARY SWITCH HAS TWO FOUR POSITIONS INDIPENDENT CIRCUITS (N - F). THE DEVICE HAS, ALSO, A MOMENTARY SWITCH, IN ALL POSITION, ON THE "F" CIRCUIT, THE SWITCH HAS A BLEAU 51 mm. KNOB WITH, ON THE TOP END, A POLYCARPONATE SLIDE WITH WHITE PRINTED PHOTOSENSITIVE LEGEND. | SPECIFICATIONS: RATING: 8 Amp @ 12V - 4 Amp @ 12V ELECTRICAL LIFE: 150.000 OPERATION MIN. AT FULL LOAD CONTACT MATERIAL: SILVER ALLOY SEALING: TOP END: IP65 BOTTOM END: IP66 OPERATING TEMPERATURE RANGE: -40° C TO 85° C ( -40° F TO 185° F ) MOUNTING MEANS: ON THE PANEL BY NYLON NUT |
| WIRING DIAGRAM | CONNECTION BOARD | |
 |
 |
 |
