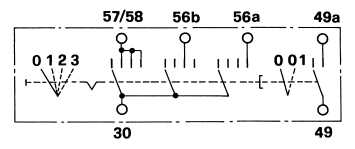

| WIRING DIAGRAM | KEY POSITION | CONNECTION | CURRENT MAX 12V | MAX CONNECTION TIME | FUNCTION | |
 |
 |
0 | - | - | - | - |
| 1 | 30 - 57/58 | 20 A |  |
CLEARANCE LIGHTS | ||
| 2 | 30
- 57/58 30 - 56/b |
10
A 10 A |
|
CLEARANCE LIGHTS/ TRAFFIC BEAMS | ||
| 3 | 30
- 57/58 30 - 56/a |
10
A 10 A |
|
CLEARANCE LIGHTS/ MAIN BEAMS | ||
| 30 - 49/a | 10 A | 1 Min. | HORN |
