PRESSURE SWITCHES PUSH SWITCHES

TABLE FOR CODE

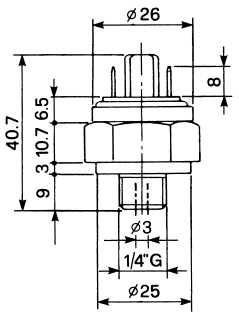

 22vcv025000_small.jpg  22025000_small1.jpg

WIRING DIAGRAM NOMINAL TENSION NOMINAL D.C. CURRENT IP GRADE (IEC 529) CALIBRATION VALUE THREADING
22024000_small.jpg 12 V 2 A IP 67 2   6 ATM 1/4" G
24 V 2 A IP 67 2   6 ATM 1/4" G
