INDEX BY APPLICATION
THERMOSTATS     P/N


 TEMPERATURE SWITCH SOCKET SUITABLE FOR PLUG    4
NOMINAL TENSION NOMINAL D.C. CURRENT PEAK CURRENT 5" IP GRADE
(IEC 529)		 CLOSING TEMPERATURE THREADING
12 V 0,5 A - IP 67 150  C ± 6° C M 16 x 1,5 6G
24 V 0,5 A - IP 67 150  C ± 6° C M 16 x 1,5 6G
21.001.000

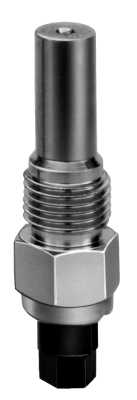

 TEMPERATURE SWITCH SOCKET SUITABLE FOR PLUG    4
NOMINAL TENSION NOMINAL D.C. CURRENT PEAK CURRENT 5" IP GRADE
(IEC 529)		 CLOSING TEMPERATURE THREADING
12 V 0,5 A - IP 67 95  C ± 3° C M 16 x 1,5 6G
24 V 0,5 A - IP 67 95  C ± 3° C M 16 x 1,5 6G
21.002.000


 TEMPERATURE SWITCH SOCKET SUITABLE FOR PLUG    4
NOMINAL TENSION NOMINAL D.C. CURRENT PEAK CURRENT 5" IP GRADE
(IEC 529)		 CLOSING TEMPERATURE THREADING
12 V 0,5 A - IP 67 140  C ± 3° C 1/2 - 14 NPFT TAB 01713
24 V 0,5 A - IP 67 140  C ± 3° C 1/2 - 14 NPFT TAB 01713
21.003.000


 TEMPERATURE SWITCH SOCKET SUITABLE FOR PLUG    4
NOMINAL TENSION NOMINAL D.C. CURRENT PEAK CURRENT 5" IP GRADE
(IEC 529)		 CLOSING TEMPERATURE THREADING
12 V 5 A - IP 67 140  C ± 3° C M 14 x 1,5 6G
24 V 5 A - IP 67 140  C ± 3° C M 14 x 1,5 6G
21.008.000


 TEMPERATURE SWITCH SOCKET SUITABLE FOR PLUG    4
NOMINAL TENSION NOMINAL D.C. CURRENT PEAK CURRENT 5" IP GRADE
(IEC 529)		 CLOSING TEMPERATURE THREADING
12 V 5 A - IP 67 170  C ± 5° C M 12 x 1,5 6G
24 V 5 A - IP 67 170  C ± 5° C M 12 x 1,5 6G
21.009.000

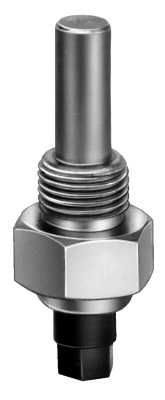

 TEMPERATURE SWITCH SOCKET SUITABLE FOR PLUG    4
NOMINAL TENSION NOMINAL D.C. CURRENT PEAK CURRENT 5" IP GRADE
(IEC 529)		 CLOSING TEMPERATURE THREADING
12 V 5 A - IP 67 95  C ± 5° C 5/8 UNF x 18 T.P.I. - 2A
24 V 5 A - IP 67 95  C ± 5° C 5/8 UNF x 18 T.P.I. - 2A
21.011.000


 TEMPERATURE SWITCH, LAMELLAR MALE TERMINAL mm 6,35
NOMINAL TENSION NOMINAL D.C. CURRENT PEAK CURRENT 5" IP GRADE
(IEC 529)		 CLOSING TEMPERATURE THREADING
12 V 5 A - IP 67 135  C ± 3° C M 14 x 1,5 6g
24 V 5 A - IP 67 135  C ± 3° C M 14 x 1,5 6g

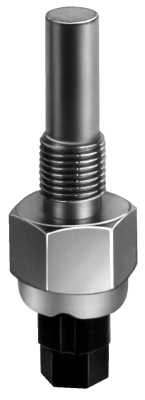

21.013.000


 TEMPERATURE SWITCH, LAMELLAR MALE TERMINAL mm 6,35
NOMINAL TENSION NOMINAL D.C. CURRENT PEAK CURRENT 5" IP GRADE
(IEC 529)		 CLOSING TEMPERATURE THREADING
12 V 5 A - IP 67 210  C ± 10° C M 10 x 1,5
24 V 5 A - IP 67 210  C ± 10° C M 10 x 1,5
21.015.000

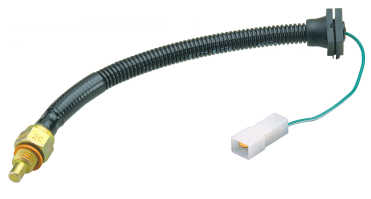

 TEMPERATURE SWITCH
NOMINAL TENSION NOMINAL D.C. CURRENT PEAK CURRENT 5" IP GRADE
(IEC 529)		 CLOSING TEMPERATURE THREADING
12 V 0,5 A - IP 67 105  C ± 10° C M 12 x 1,5
24 V 0,5 A - IP 67 105  C ± 10° C M 12 x 1,5
21.014.000




 TEMPERATURE SENDER FOR ELECTRI THERMOMETER
NOMINAL TENSION THREADING
12 V 1/8" x 27 NPTF
24 V 1/8" x 27 NPTF
21.017.000
°C OHM °C OHM °C OHM °C OHM
40,0 1157,6 70,0 352,6 100,0 130,0 13,0 55,6
45,0 934,9 75,0 295,0 105,0 111,8 135,0 48,9
50,0 760,0 80,0 248,1 110,0 96,5 140,0 43,1
55,0 621,8 85,0 209,7 115,0 83,6 145,0 38,1
60,0 511,7 90,0 178,0 120,0 72,7 150,0 33,7
65,0 423,6 95,0 151,8 125,0 63,5 - -

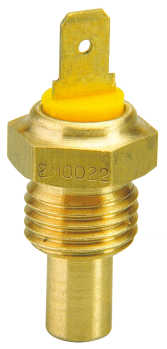

 TEMPERATURE SENDER FOR ELECTRI THERMOMETER
NOMINAL TENSION THREADING
12 V M 14 x 1,5
24 V M 14 x 1,5
U2M020022
°C OHM °C OHM °C OHM
40,0 1650 - 800 50,0 287 - 207 120,0 86 - 66
50,0 1080 - 530 100,0 150 - 113 150,0 40 - 32

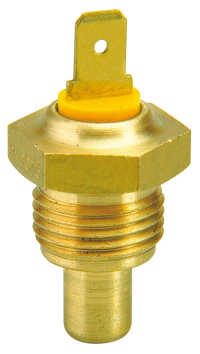

 TEMPERATURE SENDER FOR ELECTRI THERMOMETER
NOMINAL TENSION THREADING
12 V 5/8 - 18 UNF
24 V 5/8 - 18 UNF
U2M020023
°C OHM °C OHM °C OHM
40,0 1650 - 800 50,0 287 - 207 120,0 86 - 66
50,0 1080 - 530 100,0 150 - 113 150,0 40 - 32

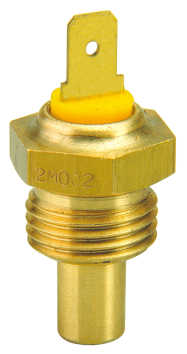

 TEMPERATURE SENDER FOR ELECTRI THERMOMETER
NOMINAL TENSION THREADING
12 V M 16 x 1,5
24 V M 16 x 1,5
U2M020024
°C OHM °C OHM °C OHM
40,0 1650 - 800 50,0 287 - 207 120,0 86 - 66
50,0 1080 - 530 100,0 150 - 113 150,0 40 - 32

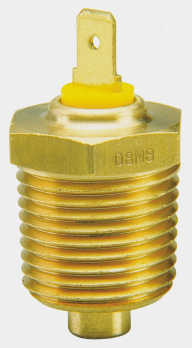

 TEMPERATURE SENDER FOR ELECTRI THERMOMETER
NOMINAL TENSION THREADING
12 V 1/2 - 14 NPTF
24 V 1/2 - 14 NPTF
U2M020025
°C OHM °C OHM °C OHM
40,0 1650 - 800 50,0 287 - 207 120,0 86 - 66
50,0 1080 - 530 100,0 150 - 113 150,0 40 - 32

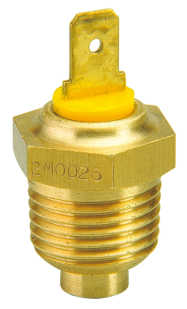

 TEMPERATURE SENDER FOR ELECTRI THERMOMETER
NOMINAL TENSION THREADING
12 V M 16 x 1,5
24 V M 16 x 1,5
U2M020026
°C OHM °C OHM °C OHM
40,0 1650 - 800 50,0 287 - 207 120,0 86 - 66
50,0 1080 - 530 100,0 150 - 113 150,0 40 - 32

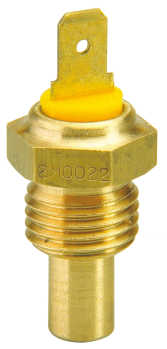

INDEX BY APPLICATION
NOMINAL TENSION THREADING
12 V 1/8 x 27 NPTF
24 V 1/8 x 27 NPTF
U2M020036
°C OHM °C OHM °C OHM
40,0 1650 - 800 50,0 287 - 207 120,0 86 - 66
50,0 1080 - 530 100,0 150 - 113 150,0 40 - 32

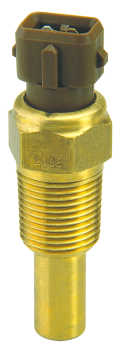

 TEMPERATURE SENDER FOR ELECTRI THERMOMETER
NOMINAL TENSION THREADING
12 V 3/8 x 18 NPTF
24 V 3/8 x 18 NPTF
U2M020033
°C OHM °C OHM °C OHM
40,0 1650 - 800 50,0 287 - 207 120,0 86 - 66
50,0 1080 - 530 100,0 150 - 113 150,0 40 - 32
