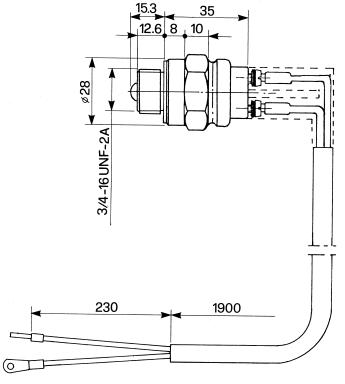

| WIRING DIAGRAM | NOMINAL TENSION | NOMINAL D.C. CURRENT | PEAK CURRENT 5" | IP GRADE (IEC 529) | OPERATING TEMPERATURE | THREADING |
 |
12 V | 20 A inductive | 30 A | IP 67 | - 20° C + 40° C | 3/4 - 16 UNF - 2A+ |
| 24 V | 10 A inductive | 20 A | IP 67 | - 20° C + 40° C | 3/4 - 16 UNF - 2A+ |
