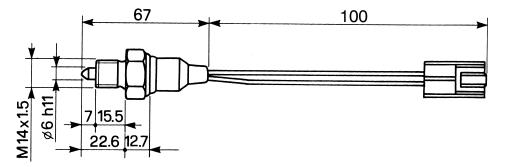

| WIRING DIAGRAM | NOMINAL TENSION | NOMINAL D.C. CURRENT | PEAK CURRENT 5" | IP GRADE (IEC 529) | OPERATING TEMPERATURE | THREADING |
 |
12 V | 8 A | 30 A | IP 66 | - 20° C + 40° C | M 14 x 1,5 6g |
| 12 V | 4 A | 20 A | IP 66 | - 20° C + 40° C | M 14 x 1,5 6g |
|
|
| WIRING DIAGRAM | NOMINAL TENSION | NOMINAL D.C. CURRENT | PEAK CURRENT 5" | IP GRADE (IEC 529) | OPERATING TEMPERATURE | THREADING |
|
12 V | 8 A | 30 A | IP 66 | - 20° C + 40° C | M 14 x 1,5 6g |
| 12 V | 4 A | 20 A | IP 66 | - 20° C + 40° C | M 14 x 1,5 6g |
