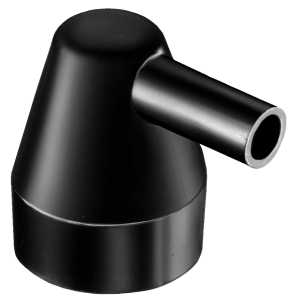

17.122.004 |
30.16.03826 |
| WIRING DIAGRAM | NOMINAL TENSION | NOMINAL D.C. CURRENT | PEAK CURRENT 5" | IP GRADE (IEC 529) | OPERATING TEMPERATURE |
 |
12 V | 10 A inductive | 30 A | IP 67 | - 20° C + 40° C |
| 24 V | 5 A inductive | 20 A | IP 67 | - 20° C + 40° C |
|
|
|
17.122.004 |
30.16.03826 |
| WIRING DIAGRAM | NOMINAL TENSION | NOMINAL D.C. CURRENT | PEAK CURRENT 5" | IP GRADE (IEC 529) | OPERATING TEMPERATURE |
|
12 V | 10 A inductive | 30 A | IP 67 | - 20° C + 40° C |
| 24 V | 5 A inductive | 20 A | IP 67 | - 20° C + 40° C |
