TOGGLE SWITCHES TWIN CIRCUITS STABLE/INSTABLE TOGGLE SWITCH WITH LOCK GOLDEN PLATE CONTACTS

TABLE FOR CODE

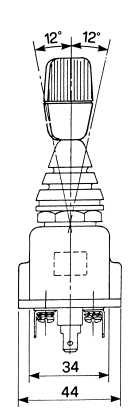

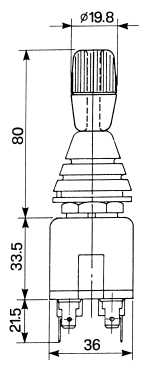

16235000_small.jpg  16235000_small1.jpg   15132FF000_small1.jpg  1510S4000_small2.jpg

WIRING DIAGRAM NOMINAL TENSION NOMINAL D.C. CURRENT PEAK CURRENT 5" IP GRADE (IEC 529) OPERATING TEMPERATURE FUNCTION
16235000_small.jpg 12 V 2,5 mA 1 A IP 53 - 20° C  + 40° C Lock
24 V 2,5 mA 1 A IP 53 - 20° C  + 40° C
