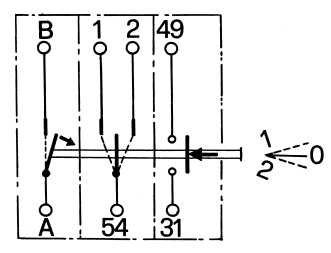

| WIRING DIAGRAM | NOMINAL TENSION | NOMINAL D.C. CURRENT | PEAK CURRENT5" | IP GRADE (IEC 529) | OPERATING TEMPERATURE | FUNCTION |
 |
12 V | 8,5 A inductive | 20 A | IP 53 | - 20° C + 40° C |    |
| 24 V | 5 A inductive | 15 A | IP 53 | - 20° C + 40° C |
| WIRING DIAGRAM | NOMINAL TENSION | NOMINAL D.C. CURRENT | PEAK CURRENT5" | IP GRADE (IEC 529) | OPERATING TEMPERATURE | FUNCTION |
|
12 V | 8,5 A inductive | 20 A | IP 53 | - 20° C + 40° C | |
| 24 V | 5 A inductive | 15 A | IP 53 | - 20° C + 40° C |
