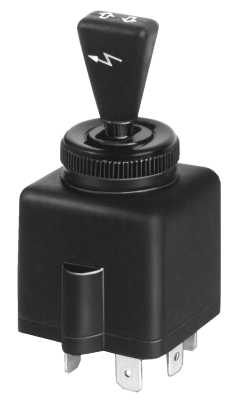

| 15.104.005 |

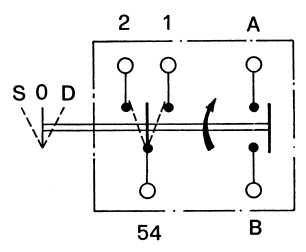

| WIRING DIAGRAM | NOMINAL TENSION | NOMINAL D.C. CURRENT | PEAK CURRENT 5" | IP GRADE (IEC 529) | OPERATING TEMPERATURE | FUNCTION |
 |
12 V | 8,5 A inductive | 20 A | IP 53 | - 20° C + 40° C |   |
| 24 V | 5 A inductive | 15 A | IP 53 | - 20° C + 40° C |
|

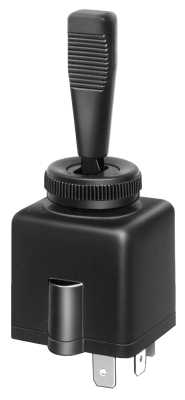

| 15.104.005 |
| WIRING DIAGRAM | NOMINAL TENSION | NOMINAL D.C. CURRENT | PEAK CURRENT 5" | IP GRADE (IEC 529) | OPERATING TEMPERATURE | FUNCTION |
|
12 V | 8,5 A inductive | 20 A | IP 53 | - 20° C + 40° C | |
| 24 V | 5 A inductive | 15 A | IP 53 | - 20° C + 40° C |
