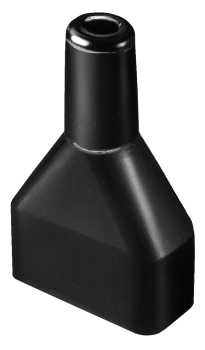

15.105.007 |
| WIRING DIAGRAM | NOMINAL TENSION | NOMINAL D.C. CURRENT | PEAK CURRENT 5" | IP GRADE(IEC 529) | OPERATING TEMPERATURE |
 |
12 V = 54 C/1 | 12 A inductive | 30 A | IP 67 | - 20° C + 85° C |
| 12 V = 54 C/2 | 5 A inductive | 30 A | IP 67 | - 20° C + 85° C | |
| 24 V = 54 C/1 | 8 A inductive | 20 A | IP 67 | - 20° C + 40° C | |
| 24 V = 54 C/1 | 3 A inductive | 20 A | IP 67 | - 20° C + 85° C |
