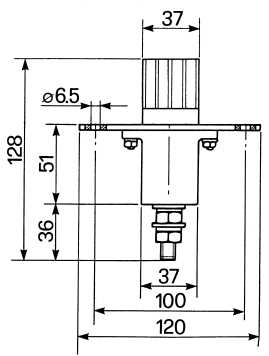

BATTERY MAIN SWITCH PUSH BUTTON BATTERY MAIN SWITCH SINGLE

TABLE FOR CODE

13008000_small.jpg  1300yy8000_small1.jpg  13002000_small.jpg

WIRING DIAGRAM NOMINAL TENSION NOMINAL D.C. CURRENT PEAK CURRENT 5" IP GRADE (IEC 529) OPERATING TEMPERATURE
24 V 250 A 2500 A IP 65 - 40° C + 80° C
