BATTERY MAIN SWITCHES BATTERY MAIN SWITCH SINGLE POLE WITH RUBBER PROTECTION CAP FOR MARINE PURPOSES

TABLE FOR CODE

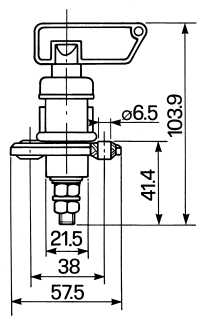

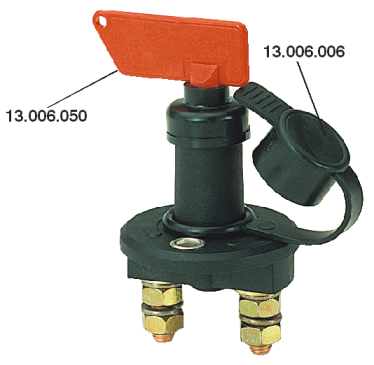

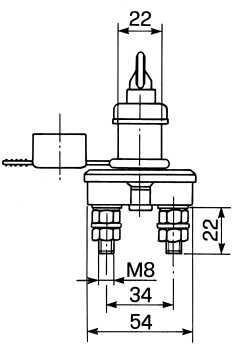

 13005000_small.jpg 13006000_small.jpg  1300ffmn5000_small1.jpg  13006050_small.jpg

WIRING DIAGRAM NOMINAL TENSION NOMINAL D.C. CURRENT PEAK CURRENT 5" IP GRADE (IEC 529) OPERATING TEMPERATURE REMOVABLE HANDLE
13001000.jpg (1165 byte) 12 V 100 A 500 A IP 43 - 40° C + 80° C 13.006.050
24 V 100 A 500 A IP 43 - 40° C + 80° C 13.006.050
