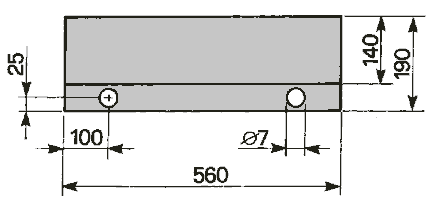

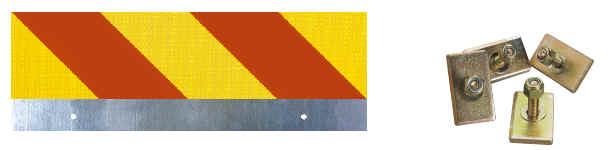

TRAILER PANEL KIT

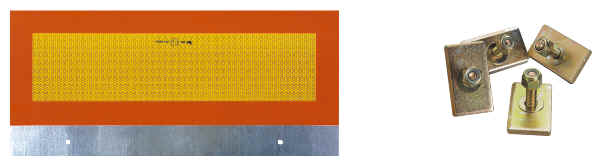

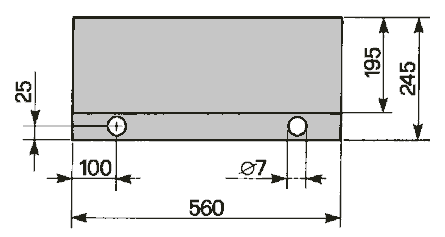

TRUCK PANEL KIT

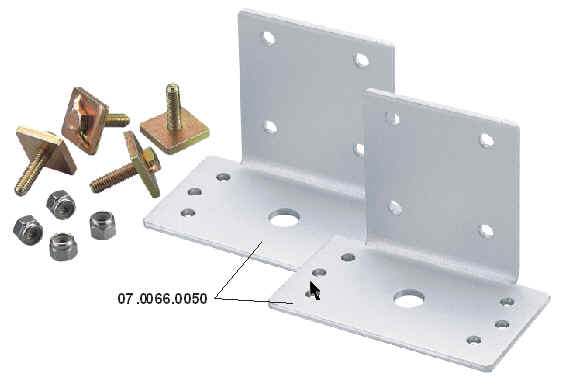

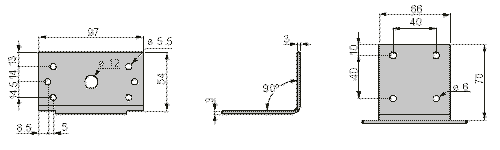

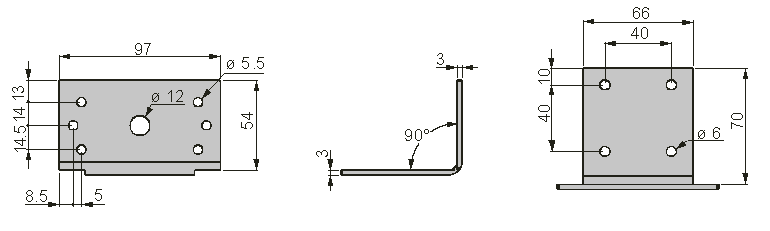

BRACKET FOR ACCESSORIES

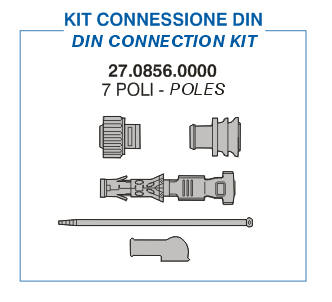

S/SEAL CONNECTION LICENCE PLATE LAMP

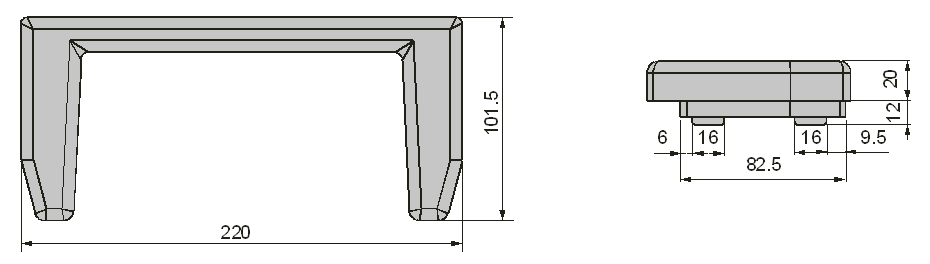

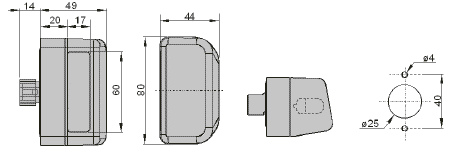

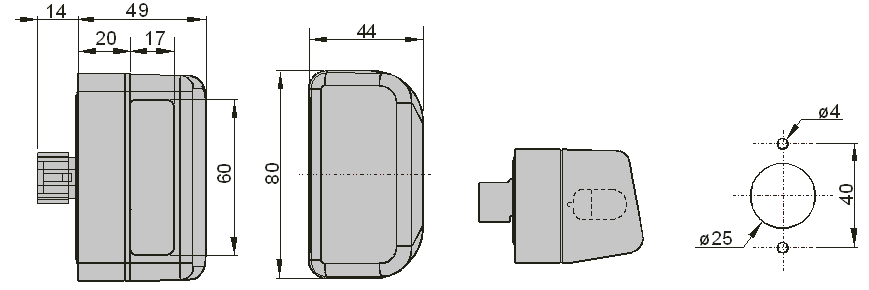

SIDE CAP RH - LH

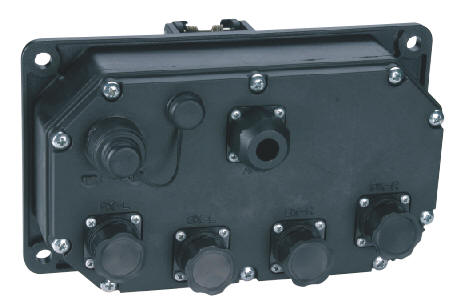

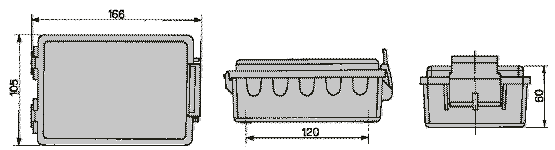

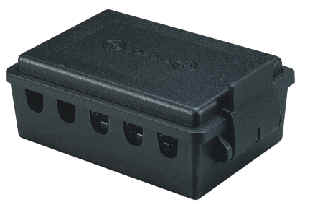

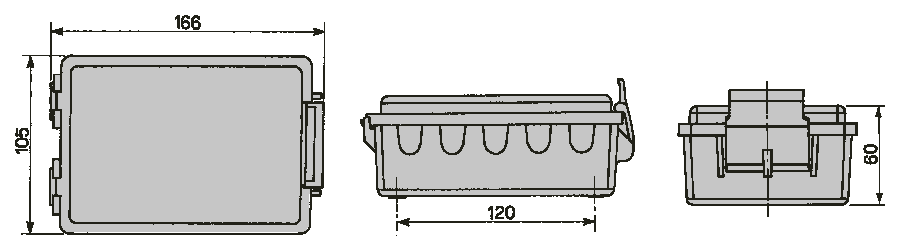

10 POLES JUNCTION BOX

ADR CABLES

P/N	VERSION	WIRE
30.15.06857	2 WAY CABLE	2 x 1 mm2
30.15.06858	5 WAY CABLE	5 x 1 mm2
30.15.06589	7 WAY CABLE	6 x 1 mm2 + 1 x 2 mm2
30.15.07182	13 WAY CABLE	10 x 1,5 mm2 + 3 x 2,5 mm2
30.15.07130	12 WAY SQUARE CABLE	2 x 1 mm2

TRUCK AND TRAILER CONNECTION 6-1mm² +1-1,5mm2

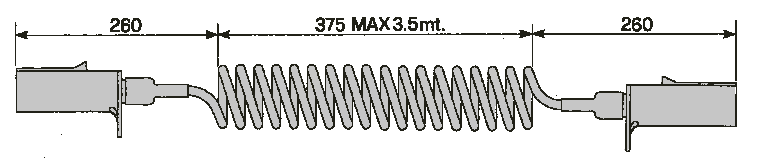

COIL CABLE 2 PLUGS 12/24V.

P/N	COIL	12 V	24V	7POLES PLUG
26.380.000	30		X	X
26.381.000	30		X	X
26.382.000	60		X	X
26.383.000	60		X	X
26.384.000	30	X		X
26.385.000	60	X		X
26.386.000	30
26.387.000	60

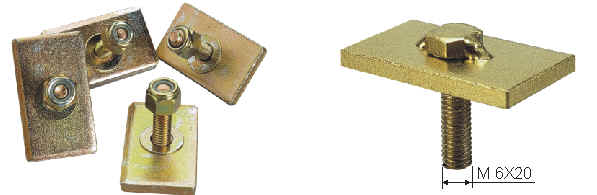

FIXING KIT FOR S.M.L.

SILENT-BLOC

EXPANSION RIVET

EXPANSION BOLT

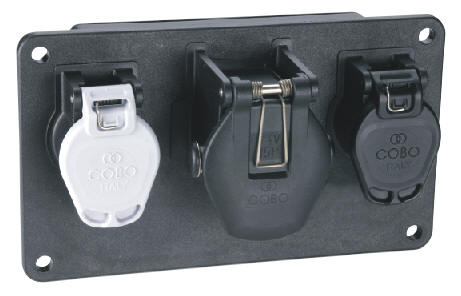

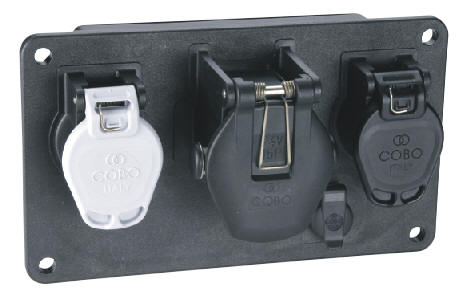

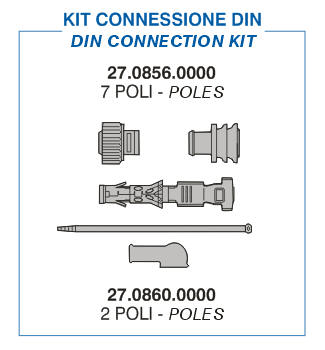

TRAILER SOCKET BOXES

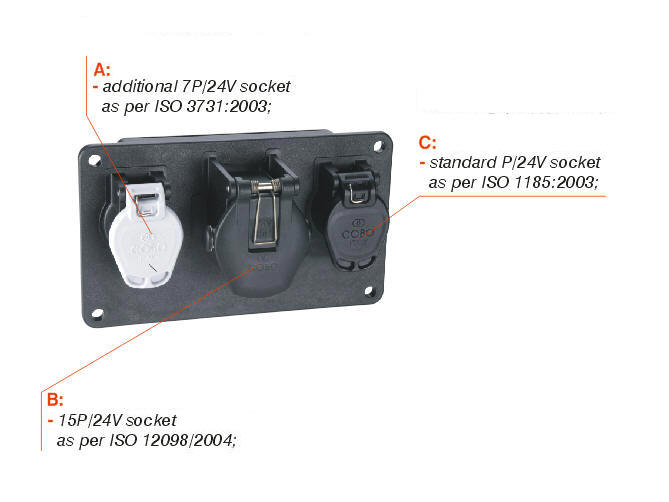

15 poles / 7 poles N / 7 poles S

PRINCIPAL FEATURES

- Compact dimensions to make the installation easier.
- Shock and chemical agents resistance.
- Electrical connection, sealing IP 54.
- AUX loads protection by minifuses.
- It allows high flexibility in planning and execution
of the electrical system
- Sockets lay-out ref. A-B-C as per ISO 4009:2000;
- Functioning rated voltage 24V;
- Functioning limit voltage 12V ± 32V ;
- Current on the contacts: see connection outline;
- Working limit temperature -30°C ÷ +60°C (-22°F ÷ +140°F);
- Functioning limit temperature -40°C ÷ +85°C (-40°F ÷ +185°F);
- Protection degree from dust and rain IP54 as CEI EN 60529:1992;
- Vibration resistance 50m/s^2 as per ISO 4091:2003;
- Salt spray resistance: 300 h as per ISO 4091: 200

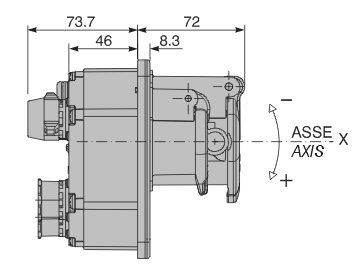

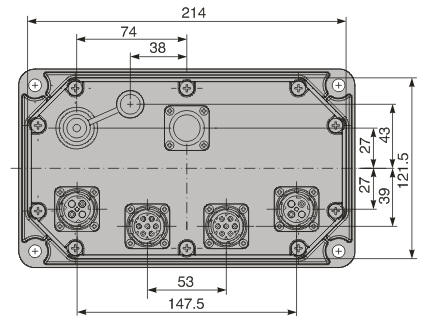

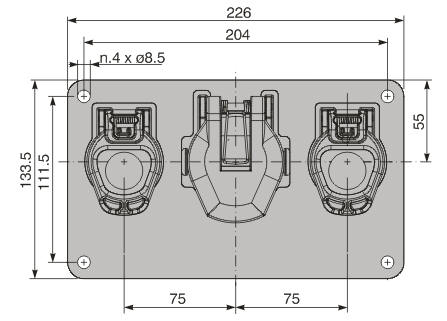

FRONT VIEW

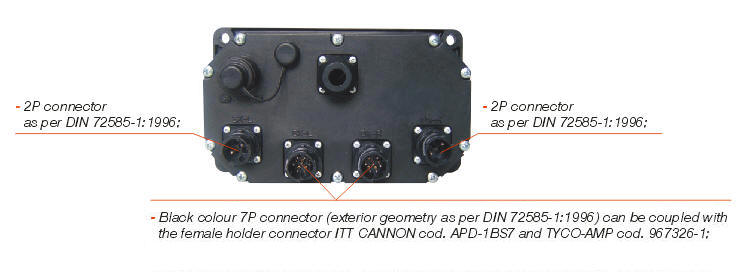

REAR VIEW

PRESCRIPTIONS

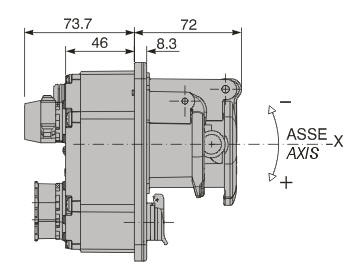

- Fit the device on the structure with the horizontal X axis
or tilted in the direction (+):
- Lock the device to the structure by M8 screws. Use flat washers on the side of
the shunt box and grower type washers on the opposite side.
Use M8 nuts; tightening torque: 10 1Nm;
- Tightening torque for cover screws: 0.6 0.2Nm.
Use self-forming screws TCCIC 5x25mm.
- Tightening torque of threaded plug for fuses: 1.2 0.2Nm;
- Supply state: non returnable protection plugs fitted to connectors;
sealing plugs fitted to connectors, for the other specifications,
please, refer to the maintenance card

CONNECTION DIAGRAM according to ISO 12098 - 2004		FRONT			REAR
FUNCTION	MAX ABSORPTION PER LINE	15 P SOCKET	7 P N SOCKET	7 P S SOCKET	15 P SOCKET LAMELLAR CONNECTIONS	7 P N SOCKET LAMELLAR CONNECTIONS	7 P S SOCKET LAMELLAR CONNECTIONS	2 P CONNECTOR DIN REAR LH LAMP	7 P CONNECTOR DIN REAR LH LAMP	2 P CONNECTOR DIN REAR RH LAMP	7 P CONNECTOR DIN REAR RH LAMP
FUNCTION	MAX ABSORPTION PER LINE	POS.	POS.	POS.	POS.	POS.	POS.	POS.	POS.	POS.	POS.
LH TURN INDICATOR	21W	1	3/L		1	3			4
RH TURN INDICATOR	21W	2	5/R		2	5					4
REAR FOG LAMP	42W	3		7/ZEN	3		7		2		2
COMMON GROUND FOR 15 P SOCKET CONTACTS POS. FROM 1 TO 3 AND FROM 5 TO 12	267W	4	1/31	1/31	4	1	1	2	1	2	1
REAR LEFT TAIL LAMPS. LEFT MARKER LAMPS AND REAR LEFT NUMBER PLATE LAMPS	60W(1)	5	2/58		5	2		1	6
	60W(1)	5	2/58		5	2		1	7
REAR RIGHT TAIL LAMPS. RIGHT MARKER LAMPS AND REAR RIGHT NUMBER PLATE LAMPS	60W(1)	6	6/58R		6	6				1	6
	60W(1)	6	6/58R		6	6				1	7
BRAKE LAMPS	84W	7	4/54		7	4			3		3
REVERSE LAMPS	42W	8		3/L	8		3		5		5

FUNCTION TO BE DEFINED MAX 10A		10			10
FUNCTION TO BE DEFINED MAX 10A		11			11
FUNCTION TO BE DEFINED MAX 10A		12			12
FUNCTION NOT USED		13			13
FUNCTION TO BE DEFINED MAX 10A		14			14
FUNCTION TO BE DEFINED MAX 10A		15			15
(1) Limit absorption of the line with: 10W for tail lamps; 10W for number plate lamp; 10W for marker rear lamp; 30W for semi trailer side marker lamps.

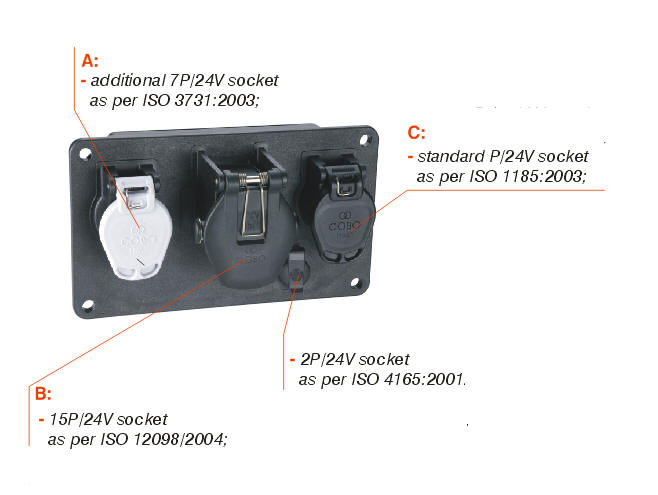

TRAILER SOCKET BOXES TYPE 2
15 poles / 7 poles N / 7 poles S / 2 poles

PRINCIPAL FEATURES
- Compact dimensions to make the installation easier.
- Shock and chemical agents resistance.
- Electrical connection, sealing IP 54.
- AUX loads protection by minifuses.
- It allows high flexibility in planning and execution
of the electrical system
- Sockets lay-out ref. A-B-C as per ISO 4009:2000;
- Functioning rated voltage 24V;
- Functioning limit voltage 12V ± 32V ;
- Current on the contacts: see connection outline;
- Working limit temperature -30°C ÷ +60°C (-22°F ÷ +140°F);
- Functioning limit temperature -40°C ÷ +85°C (-40°F ÷ +18keine5°F);
- Protection degree from dust and rain IP54 as CEI EN 60529:1992;
- Vibration resistance 50m/s^2 as per ISO 4091:2003;
- Salt spray resistance: 300 h as per ISO 4091: 2003

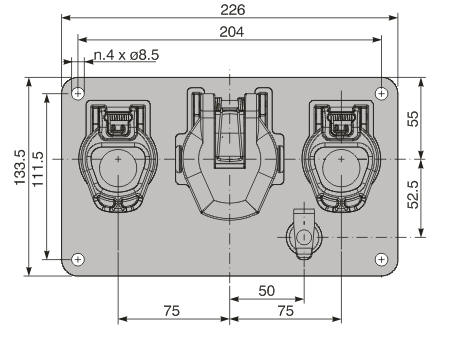

FRONT VIEW

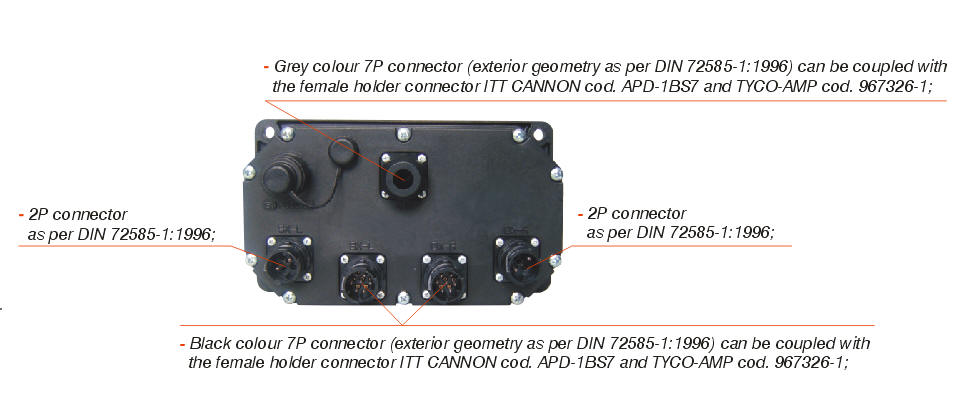

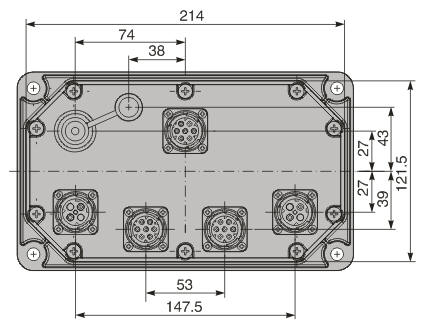

REAR VIEW

PRESCRIPTIONS

CONNECTION DIAGRAM according to ISO 12098-2004		FRONT				REAR
FUNCTION	MAX ABSORPTION PER LINE	15 P SOCKET	7 P N SOCKET	7 P S SOCKET	2 P ADDITIONAL SOCKE	15 P SOCKET LAMELLAR CONNECTIONS	7 P N SOCKET LAMELLAR CONNECTIONS	7 P S SOCKET LAMELLAR CONNECTIONS	2 P CONNECTOR DIN REAR LH LAMP	7 P CONNECTOR DIN REAR LH LAMP	2 P CONNECTOR DIN REAR RH LAMP	7 P CONNECTOR DIN REAR RH LAMP	7 P CONNECTOR DIN AUXILIARY
FUNCTION	MAX ABSORPTION PER LINE	POS.	POS.	POS.	POS.	POS.	POS.	POS.	POS.	POS.	POS.	POS.	POS.
LH TURN INDICATOR	21W	1	3/L			1	3			4
RH TURN INDICATOR	21W	2	5/R			2	5					4
REAR FOG LAMP	42W	3		7/ZEN		3		7		2		2
COMMON GROUND FOR 15 P SOCKET CONTACTS POS. FROM 1 TO 3 AND FROM 5 TO 12	555W(1)	4	1/31	1/31	2	4(*)	1(*)	1*)	2(*)	1(*)	2(*)	1(*)	1(*)
REAR LEFT TAIL LAMPS. LEFT MARKER LAMPS AND REAR LEFT NUMBER PLATE LAMPS	60W(2)	5	2/58			5	2		1	6
	60W(2)	5	2/58			5	2		1	7
REAR RIGHT TAIL LAMPS. RIGHT MARKER LAMPS AND REAR RIGHT NUMBER PLATE LAMP	60W(2)	6	6/58R			6	6				1	6
	60W(2)	6	6/58R			6	6				1	7
BRAKE LAMPS	84W	7	4/54			7	4			3		3
REVERSE LAMPS	42W	8		3/L		8		3		5		5
ADDITIONAL POWER (+24V)	288W	9		4/54	1(#)	9		4					7
FUNCTION TO BE DEFINED MAX 10A		10				10							2
FUNCTION TO BE DEFINED MAX 10A		11	7/ZEN			11							3
FUNCTION TO BE DEFINED MAX 10A		12		6/58R		12							4
FUNCTION NOT USED		13				13
FUNCTION TO BE DEFINED MAX 10A		14		2/58		14							5
FUNCTION TO BE DEFINED MAX 10A		15		5/R		15							6
(1) Limit absorption line with: 267W lamp: 288W for positive 2P socket (2) Limit absorption line with: 10W for tail lamps; 10W for number plate lamp; 10W for marker rear lamp; 30W for semi trailer side marker lamps. (*) Ground output protected by F1 fuse; (#) Positive output 2P socket protected by F2 fuse;
