LIGHT
OUTPUT OBTAINDE BY 4 WORKLAMPS WITH H3 BULBS FITTED. |
LIGHT
OUTPUT OBTAINED BY 2 WORKLAMPS WITH HID BURNERS FITTED. |

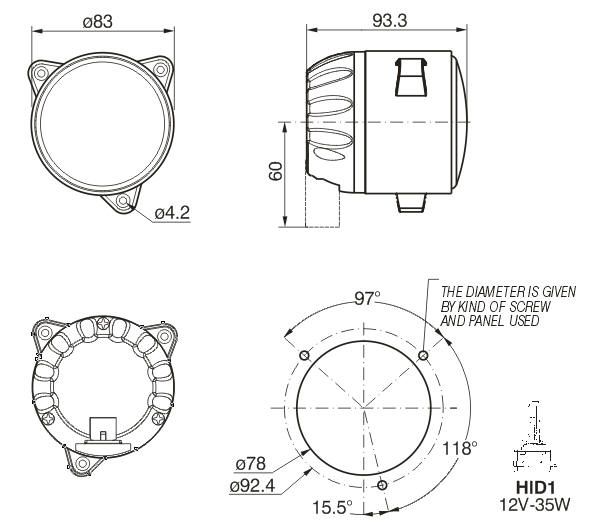

WORKLAMP WITH HID XENON LIGHT
(HIGH INTENSITY DISCHARGE)
Worklamp with xenon technology suitable for heavy duty applications
demanding high light efficiency and low power requirement.
The mechanical structure of the lamp provides high vibration resistance
and an average life 5 times longer than a standard halogen lamp. In the D1
version the igniter is integrated in the bulb, while in the D2 version it
is in the ballast.
Main product features:
- Light efficiency 2,5 times higher than a 55W lamp.
- Optimum visibility close to daylight.
- Reduced power requirement only 35W and less demanding on alternator
performance.
- High vibration resistance due to no filament.
- Lamp life 5 times longer than a standard halogen lamp.
- Full Electrical Shielding (can meet all major vehicle manufactures' EMC
requirements).
- Encapsulated and Sealed Housing (meets all major manufactures'
enviromental requirements).
- Simple geometric Shape for Easy Mounting.
- Ballast may be located up to 1,2 m from bulb.
- Microprocessor controlled.
Technical data
Nominal voltage: 12 V P/N 05.0735.0000.41 24V P/N 05.0735.0000.42
Operating voltage: 9- 16 V 18 - 32 V
Power requirement: 35W
Current: 3,2 A (12V) 1,6 A (24V)
Operating temperature: -40°C +85°C
Protection degree: IP 65 CEI EN 60529
Pointing angles range: 110 vertical +180 horizontal -180 horizontal
Efficiency: 84%
Output Waveform: 500Hz Neg Sq wave
Size (L x W x H): 84x58x30 mm.
Weight: 257 g
Burner: D1 S/R
Connectors: Input: 9006
Output: 4 pin shielded (122 cm. max) |
