"EGG RANGE"

L.E.D. VERSION

STALK END OUTLINE MARKER LAMPS

-SEALING:
  IP 65
-NEOPRENE FLEXIBLE STALK

LEGEND




 wpigk44n_small.gif 04.06b13.gif



P/N VOLT SPARE-PART MODULE VOLT TYPE Position

HOMOL.

 CONNECTION

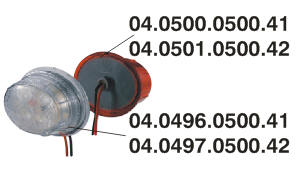

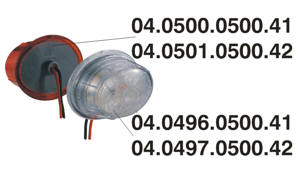

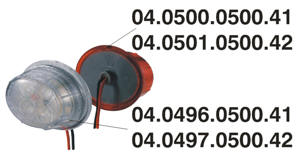

wpa06cjv_small.gif 04.0500.0000.41
04.0501.0000.42
12V
24V		 wpfsgwx7_small.gif 12V
24V

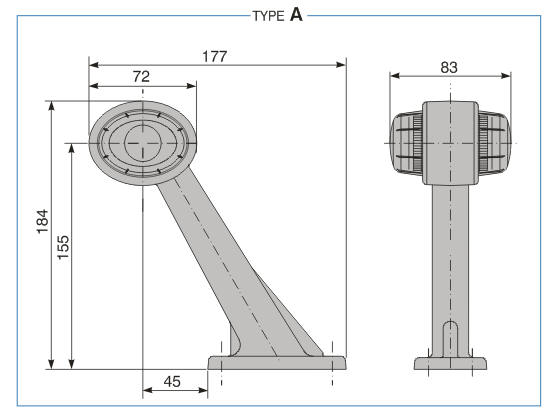

 A X ECE 04.01b42.gif
wpd0c340_small.gif 04.0496.0000.41
04.0497.0000.42
12V
24V		 wpigmbx5_small.gif 12V
24V
 A X ECE 04.01b42.gif
wpe7bqws_small.gif 04.0492.0000.41
04.0493.0000.42
12V
24V		 wp7xpxbh_small.gif 12V

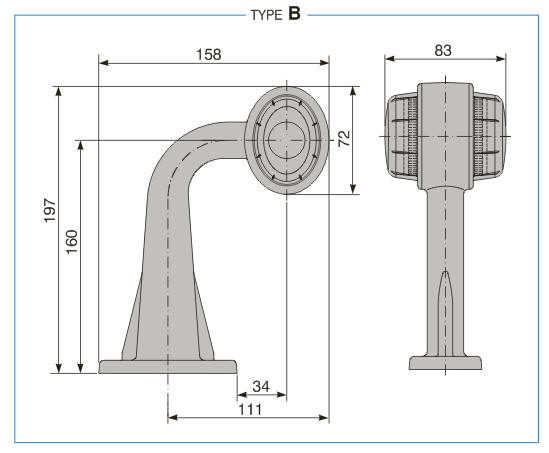

24V		 B X ECE 04.01b42.gif
12V
24V








P/N VOLT SPARE-PART MODULE VOLT Position

HOMOL.

 CONNECTION
wpvk9wri_small.gif 04.0488.0000.41
04.0489.0000.42
12V
24V		 wp7xpxbh_small.gif 12V
24V		 X ECE 04.01b42.gif
12V
24V








P/N VOLT SPARE-PART MODULE VOLT TYPE Position

HOMOL.

 CONNECTION
04.01b36.jpg 04.0514.0000.41 LH
04.0516.0000.42 LH
12V
24V		 wps8i9k2_small.gif 12V

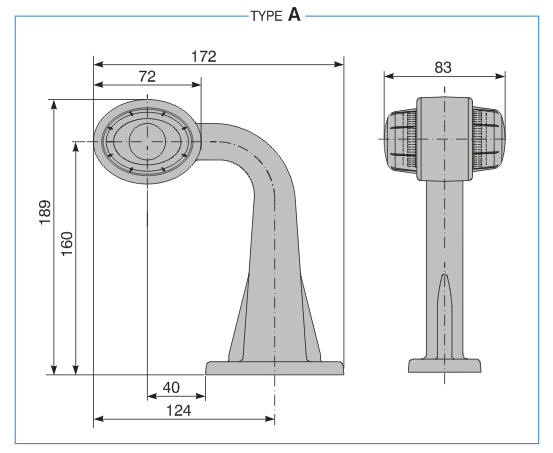

24V		 A X ECE 04.01b42.gif
12V
24V
wpa81nft_small.gif 04.0515.0000.41 RH
04.0517.0000.42 RH
12V
24V		 wp95suqs_small.gif 12V
24V		 A X ECE 04.01b42.gif
12V
24V
04.01b36.jpg 04.0518.0000.41 LH
04.0520.0000.42 LH
12V
24V		 wps8i9k2_small.gif 12V

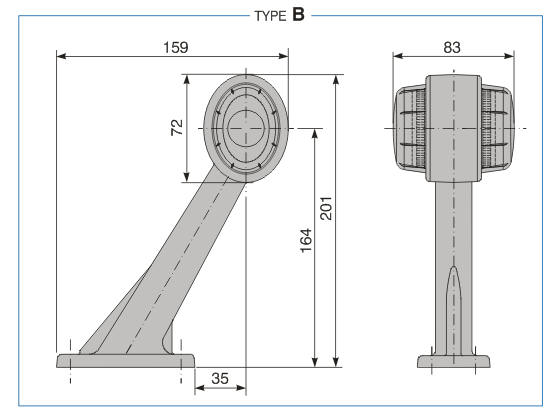

24V		 B X ECE 04.01b42.gif
12V
24V
wpa81nft_small.gif 04.0519.0000.41 RH
04.0521.0000.42 RH
12V
24V		 wp95suqs_small.gif 12V
24V		 B X ECE 04.01b42.gif
12V
24V








P/N VOLT SPARE-PART MODULE VOLT TYPE Position

HOMOL.

 CONNECTION
wpe3xvwa_small.gif 04.0502.0000.41 LH
04.0504.0000.42 LH
12V
24V		 wps8i9k2_small.gif 12V
24V		 A X ECE 04.01b42.gif
12V
24V
wpsktv1h_small.gif 04.0503.0000.41 RH
04.0505.0000.42 RH
12V
24V		 wp95suqs_small.gif 12V
24V		 A X ECE 04.01b42.gif
12V
24V
wpe3xvwa_small.gif 04.0506.0000.41 LH
04.0508.0000.42 LH
12V
24V		 wps8i9k2_small.gif 12V
24V		 B X ECE 04.01b42.gif
12V
24V
wpsktv1h_small.gif 04.0507.0000.41 RH
04.0509.0000.42 RH
12V
24V		 wp95suqs_small.gif 12V
24V		 B X ECE 04.01b42.gif
12V
24V
