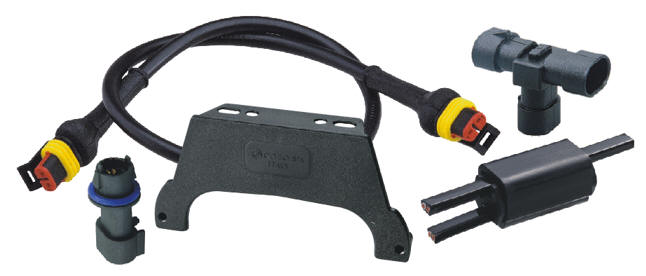

SIDE MARKER LAMPS ACCESSORIES

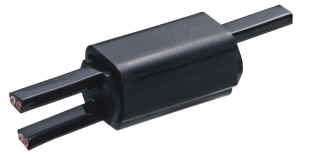

FAST CONNECTION


P/N CHARACTERISTIC
25.0054.0000 FAST CONNECTION

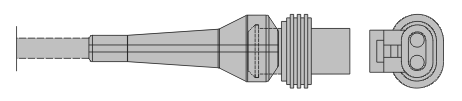

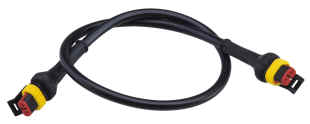

JUMPER CABLES FOR S.M.L.

P/N CHARACTERISTIC
26.372.000/00 CABLE FOR S.M.L. LENGTH 2M 2 CONNECTORS
26.373.000/00 CABLE FOR S.M.L. LENGTH 3M 2 CONNECTORS
26.374.000/00 CABLE FOR S.M.L. LENGTH 4M 2 CONNECTORS
26.375.000/00 CABLE FOR S.M.L. LENGTH 4M 1 CONNECTORS

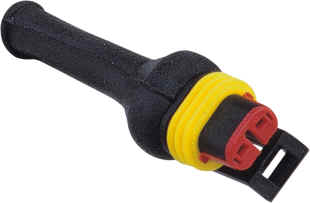

S/SEAL CONNECTION KIT
0203041.jpg 0203041.gif

SPARE PARTS PIECES FOR THE CONNECTION SYSTEM
SEALS GASKET CABLE GRIPS

FEMALE TERMINAL

CONNECTOR

LOCKNUT

CAP


 2030412.jpg 01b.ht15.jpg 203046.jpg 203048.jpg 0203044.jpg



30.16.07346 30.16.07347 30.07.07348 30.20.08137 30.07.07349 30.17.07148 30.16.07146 30.16.07147 30.20.07149

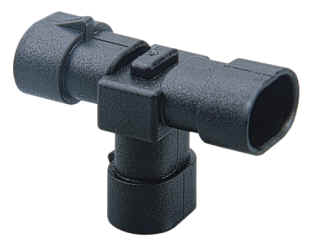

TEE-JOINT

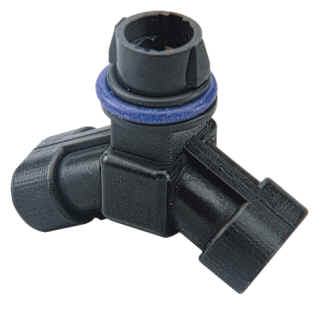

SUPERSEAL BULB HOLDERS FOR S.M.L.
0203049.jpg 02030410.jpg 02030411.jpg
30.12.0676001 30.12.0676101 30.12.0626.701
P/N CHARACTERISTIC

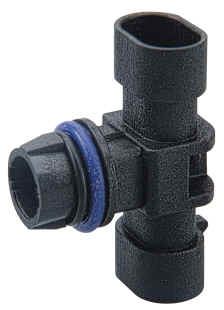

30.12.0676001 TEE-LAMP-SOCKET FOR S.M.L.
30.12.0676101 Y-LAMP-SOCKET FOR S.M.L.

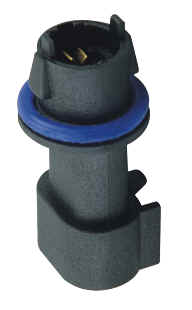

30.12.0626701 I-LAMP-SOCKET FOR S.M.L.

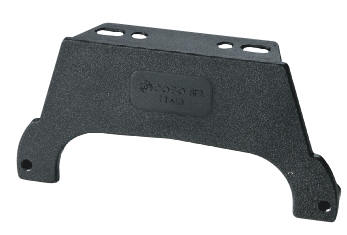

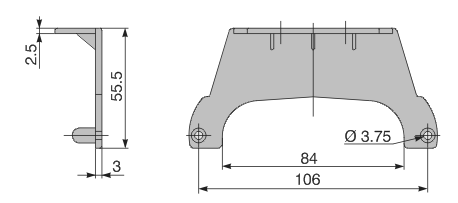

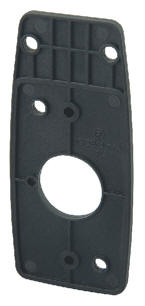

FIXING BRACKETS FOR TYPE 3
203042.gif 0203043.gif wptodtwn_small.gif
06264.jpg 06263.jpg 06262.jpg 06261.jpg

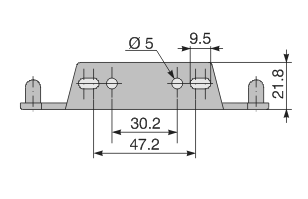

FIXING BRACKETS FOR TYPE 1
wprpy2an_small.gif wpcubj3i_small.gif wpvrrtsl_small.gif wpxktjbx_small.gif

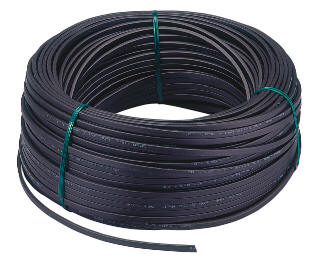

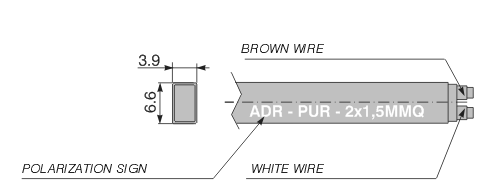

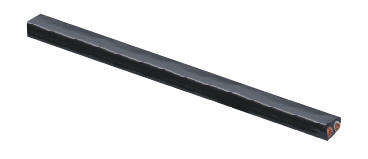

 " PIATTINA ADR " CABLE   MT 100
02030415.gif		 wpwrkdsy_small.gif

CHARACTERISTIC " ADR " CABLE
RED COPPER ASTM B3 - 90   2 x 1,5 mmq ( 48 x 0,20 )
CONDUCTOR RESISTANCE 12,5 Ohm/Km  MAX A 20° C
WORNING TEMPERATURE -20°C / +80°C
WORKING VOLTAGE 2/24 Vcc
PVC INSULATION  2,30   0,10
1 PVC SHEATH CEI 20 - 11 " TM2"
2 PUR SHEATH CEI 20 - 11 " TM PU"
