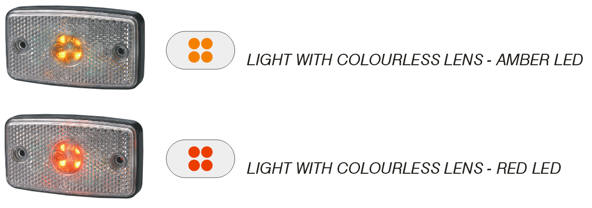

L.E.D. VERSION

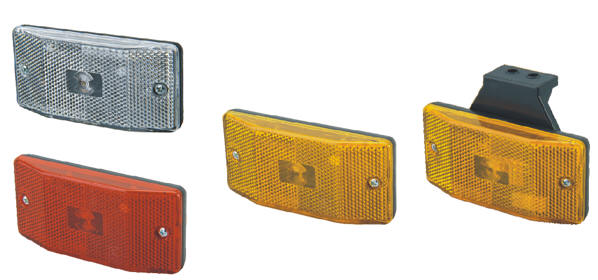

END OUTLINE SIDE MARKER LAMPS - REFLEX REFLECTORS



-SEALING: IP65
-HOUSING: BLACK PLASTIC MATERIAL
-LENS: METACRYLATE
-CABLE: WHITE AND BROWN BIPOLAR ADR ( 2 x 1,5 )
-OPERATING TEMPERATURE: -40    85

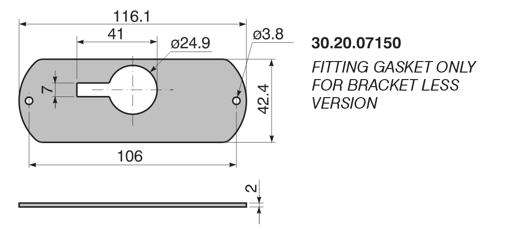

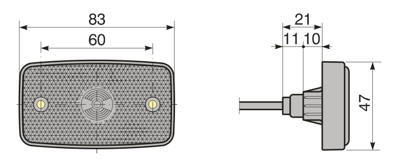

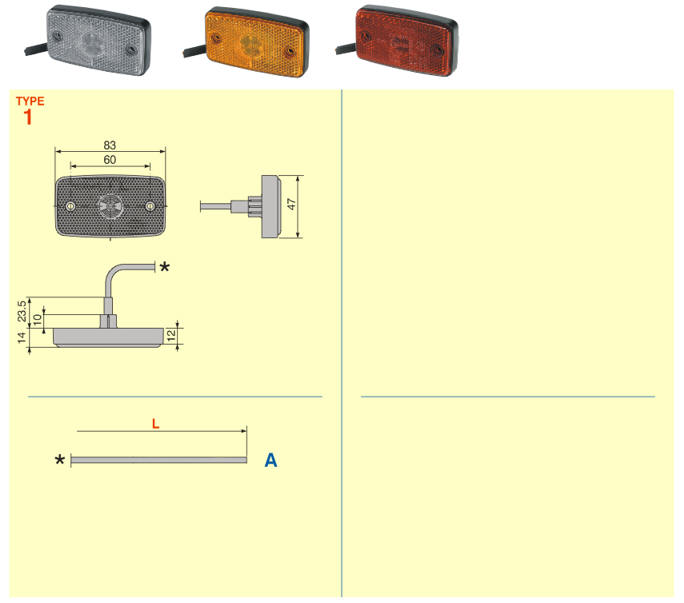

 TYPE 1 -    4 LED LAMPS

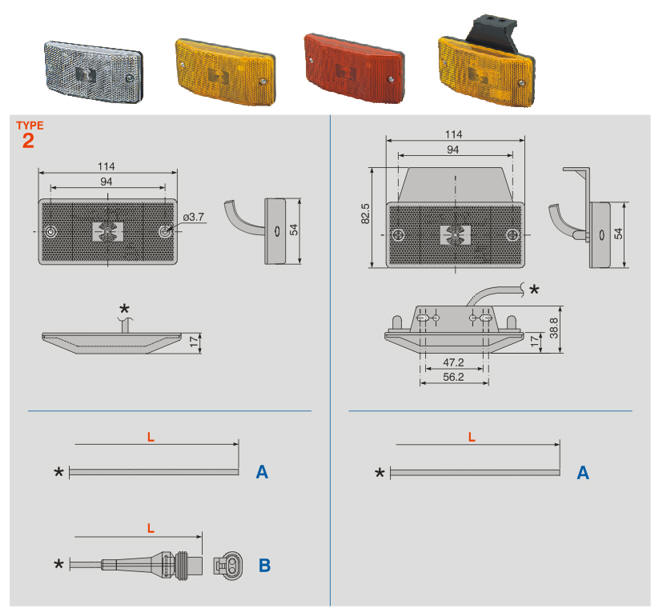

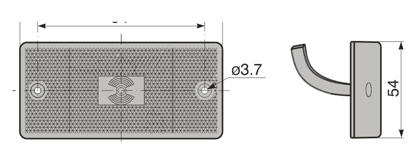

 TYPE 2 -    1 LED LAMPS

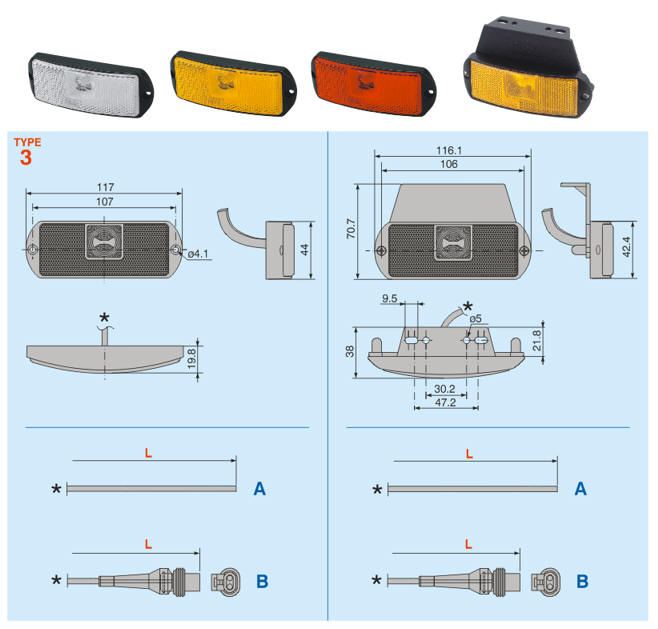

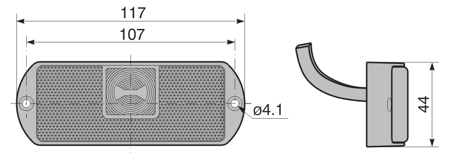

 TYPE 3 -    1 LED LAMPS

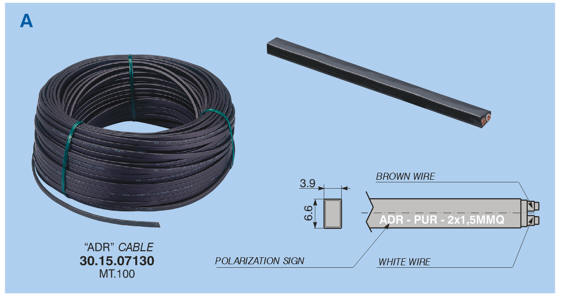

CHARACTERISTIC " ADR " CABLE
RED COPPER ASTM B3 - 90   2 x 1,5 mmq ( 48 x 0,20 )
CONDUCTOR RESISTANCE 12,5 Ohm/Km  MAX A 20° C
WORNING TEMPERATURE -20°C / +80°C
WORKING VOLTAGE 2/24 Vcc
PVC INSULATION  2,30   0,10
1 PVC SHEATH CEI 20 - 11 " TM2"
2 PUR SHEATH CEI 20 - 11 " TM PU"

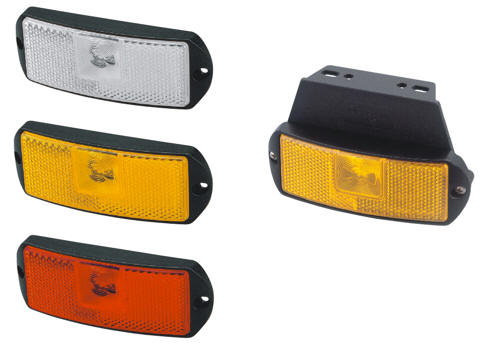

02030471.gif 4 LED LAMPS
P/N VOLT TYPE COLOUR BRACKET ADR CABLE LENGTH
L

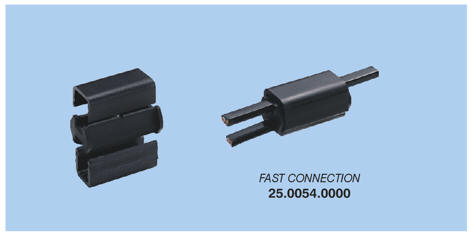

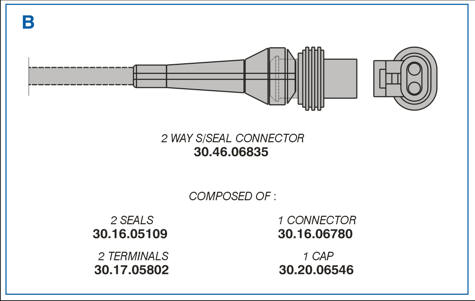

FAST CONNECTION
03.0634.0000.41 12V A 02030466.gif   500
03.0642.0000.42 24V A 02030466.gif   500
04.0481.0000.41 12V A 02030467.gif   500
04.0484.0000.42 24V A 02030467.gif   500
12.1255.0000.41 12V A 02030468.gif   500
02.1258.0000.42 24V A 02030468.gif   500
04.0480.0000.41 12V A 02030469.gif   500
04.0483.0000.42 24V A 02030469.gif   500
02.1254.0000.41 12V A 02030470.gif   500
02.1257.0000.42 24V A 02030470.gif   500

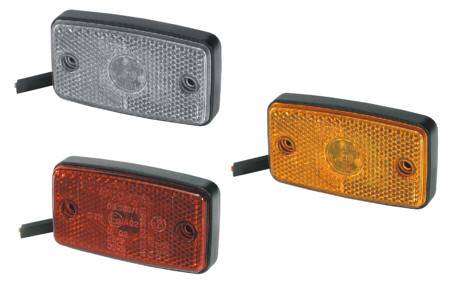

02030474.gif 1LED LAMPS
P/N VOLT TYPE COLOUR BRACKET ADR CABLE LENGTH
L

FAST CONNECTION
03.433.000.42 24V A 02030466.gif   500
04.314.000.42 24V A 02030469.gif   500
04.0477.0000.42 24V A 02030469.gif   1000
02.884.000.42 24V A 02030470.gif   500
03.0626.0000.42 24V A 02030466.gif X 500
04.315.000.42 24V A 02030469.gif X 500
02.1225.0000.42 24V A 02030470.gif X 500
04.0478.0000.42 24V A 02030469.gif   1000



02030474.gif 1 LED LAMPS
P/N VOLT TYPE COLOUR BRACKET ADR CABLE LENGTH
L

FAST CONNECTION
03.0520.0000.41 12V A 02030466.gif   285
03.0519.0000.42 24V A 02030466.gif   285
03.0525.0000.41 12V A 02030466.gif   500
03.0526.0000.42 24V A 02030466.gif   500
03.0578.0000.41 12V A 02030466.gif   4000
03.0579.0000.42 24V A 02030466.gif   4000
04.0343.0000.41 12V A 02030469.gif   285
04.0344.0000.42 24V A 02030469.gif   285
04.0376.0000.41 12V A 02030469.gif   500
04.0377.0000.42 24V A 02030469.gif   500
04.0378.0000.41 12V A 02030469.gif   1500
04.0379.0000.42 24V A 02030469.gif   1500
02.1082.0000.41 12V A 02030470.gif   500
02.1083.0000.42 24V A 02030470.gif   500
02.1084.0000.41 12V A 02030470.gif   3000
02.1085.0000.42 24V A 02030470.gif   3000
02.1143.0000.41 12V A 02030470.gif   4000
02.1144.0000.42 24V A 02030470.gif   4000
02.1149.0000.41 12V A 02030470.gif   7000
02.1150.0000.42 24V A 02030470.gif   7000
04.0411.0000.41 12V A 02030469.gif X 500
04.0412.0000.42 24V A 02030469.gif X 500
04.0413.0000.41 12V A 02030469.gif X 1500
04.0414.0000.42 24V A 02030469.gif X 1500
03.0522.0000.41 12V B 02030466.gif   315
03.0521.0000.42 24V B 02030466.gif   315
03.0527.0000.41 12V B 02030466.gif   530
03.0528.0000.42 24V B 02030466.gif   530
04.0380.0000.41 12V B 02030469.gif   315
04.0381.0000.42 24V B 02030469.gif   315
04.0382.0000.41 12V B 02030469.gif   530
04.0383.0000.42 24V B 02030469.gif   530
04.0384.0000.41 12V B 02030469.gif   1530
04.0385.0000.42 24V B 02030469.gif   1530
04.0485.0000.42 24V A 02030469.gif X 1530
