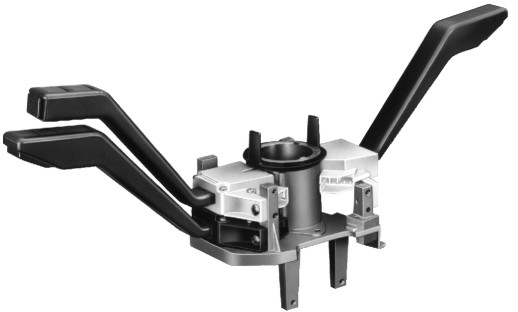

300 series STEERING COLUMN LOCKING



CONTROL LIGHTS SWITCH + WINDSHIELD WIPER

-BODY: BLACK NYLON
-APPLICATION: TRUCKS




FUNCTION PEAK LOAD 12 V PEAK LOAD 24 V
WARNING HORN 5 A 3 A
MEETING BEAMS 6,5 A 4,5 A
DRIVING BEAMS 7 A 5 A
DRIVING BEAMS FLASHING 7 A 5 A
DIRECTION 7 A 5 A
WINDSHIELD WASHER 5 A 3 A
INTERMITTENT WINDSCREEN WIPER 1,8 A 1 A
1 SPEED WINDSHIELDWIPER 8 A 5 A
2 SPEED WINDSHIELDWIPER 9 A 6 A

LAVACRISTALLOTERGICRISTALLO INTERMITTENTETERGICRISTALLO 1 VELOCITA'TERGICRISTALLO 2 VELOCITA'

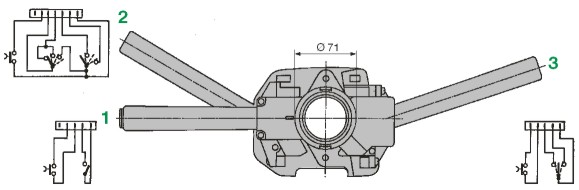

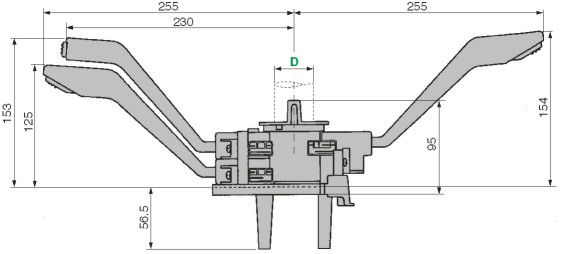

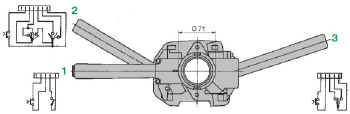

P/N DIAMETRO
D		 1
2		 3
COLOR FUNCTION SPARE PART COLOR FUNCTION SPARE PART COLOR FUNCTION SPARE PART
01.300.000 Ø 47 DARK GREY WARNING HORNDIRECTION 01.300.100 DARK GREY MEETING BEAMSDRIVING BEAMSDRIVING BEAMS FLASHING 01.300.200 DARK GREY WINDSHIELD WASHERINTERMITTENT WINDSCREEN WIPER1 SPEED WINDSHIELDWIPER2 SPEED WINDSHIELDWIPER 01.300.300
01.301.000 Ø 47 ANTHRACITE WARNING HORNDIRECTION 01.301.100 ANTHRACITE MEETING BEAMSDRIVING BEAMSDRIVING BEAMS FLASHING 01.301.200 ANTHRACITE WINDSHIELD WASHERINTERMITTENT WINDSCREEN WIPER1 SPEED WINDSHIELDWIPER2 SPEED WINDSHIELDWIPER 01.301.300
