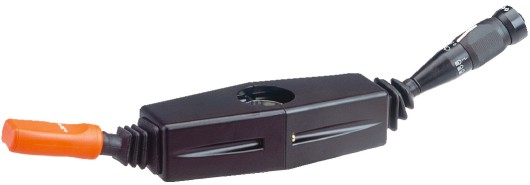

240 series STEERING COLUMN LOCKING
LIGHT CONTROL SWITCH + FORWARD-NEUTRAL-REVERSE SHIFTER
-INTERIOR/EXTERIOR LIGHTS IGNITION: TURNING LEVER KNOB
-INTERIOR LEVER: METALLIC
-LEVER COVERING: ABS OR POLYAMIDE + FUNCTION SYMBOLS
-CAP: BLACK NEOPRENE RUBBER
-PROTECTION CONTAINER: BLACK ALUMINIUM ALLOY
-CONNECTION CABLE: SUITABLE WITH DIFFERENT KINDS OF CONNECTION

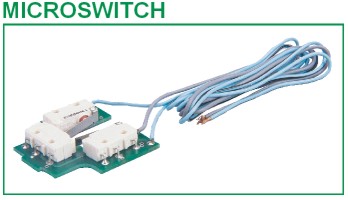

-ELECTRICAL CONTACTS: MICRO SWITCH

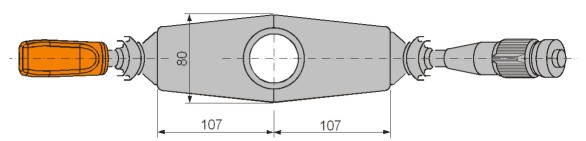

-SETTING: DESIGNED FOR STEERING COLUMN OF DIFFERENT DIAMETERS
| FUNCTION | PEAK LOAD 12 V | PEAK LOAD 24 V |
 |
5 A | 3 A |
 |
6,5 A | 4,5 A |
 |
7 A | 5 A |
 |
5 A | 3 A |
 |
7 A | 5 A |
 |
7 A | 5 A |
 |
1,8 A | 1 A |
 |
8 A | 5 A |
 |
9 A | 6 A |
 |
5 A | 3 A |
| FUNCTION |
PEAK LOAD 8V - DC |
 |
5 - 100 mA |
 |
5 - 100 mA |
 |
5 - 100 mA |
|
||||||||||||||

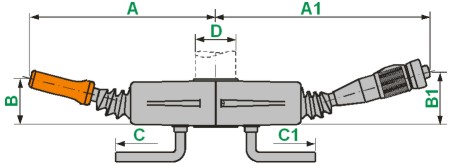

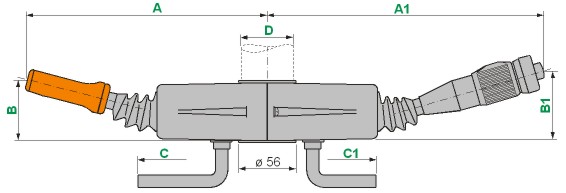

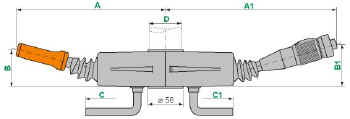

| P/N | A | B |  C |
|
FUNCTION |  D |
FUNCTION | A1 | B1 |  C1 |
 SPARE PART |
|||
| 01.0692.0000 | 230 |
60 |
 |
01.0691.0600 | |
Ø 45 | |
265 | 65 |  |
01.0692.0500 | |||
|
||||||||||||||
| P/N | A | B | C |
|
FUNCTION | D |
FUNCTION | A1 | B1 | C1 |
SPARE PART |
|||
| 01.0697.0000 | 230 |
60 |
 |
01.0691.0600 | |
Ø 45 | |
265 | 65 |  |
01.0697.0500 | |||
|
||||||||||||||
| P/N | A | B | C |
|
FUNCTION | D |
FUNCTION | A1 | B1 | C1 |
SPARE PART |
|||
| 01.0691.0000 | 230 |
60 |
|
01.0691.0600 | |
Ø 45 | |
265 | 65 |  |
01.0678.0500 | |||
