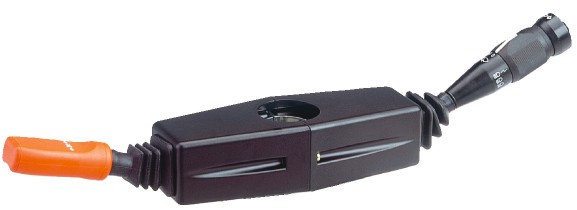

240 series STEERING COLUMN LOCKING

LIGHT CONTROL SWITCH + FORWARD-REVERSE-SLOW-FAST SHIFTER

-INTERIOR/EXTERIOR LIGHTS IGNITION: TURNING LEVER KNOB
-INTERIOR LEVER: METALLIC
-LEVER COVERING: ABS OR POLYAMIDE+ FUNCTION SYMBOLS
-CAP: BLACK NEOPRENE RUBBER
-PROTECTION CONTAINER: BLACK ALUMINIUM ALLOY
-CONNECTION CABLE: SUITABLE WITH DIFFERENT KINDS OF CONNECTION
-ELECTRICAL CONTACTS: OPEN AIR
-SETTING: DESIGNED FOR STEERING COLUMN OF DIFFERENT DIAMETERS

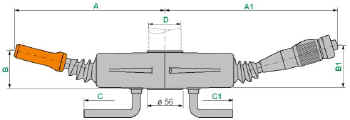

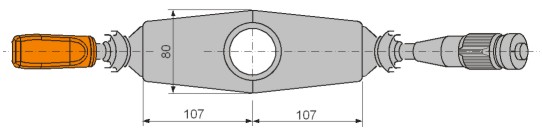

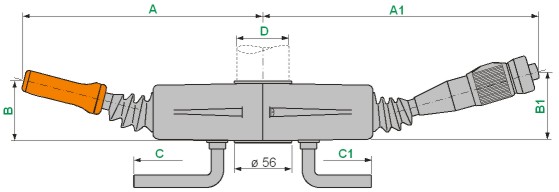

d1_small.jpg d2_small.jpg



FUNCTION PEAK LOAD 12 V PEAK LOAD 24 V
WARNING HORN 5 A 3 A
MEETING BEAMS 6,5 A 4,5 A
DRIVING BEAMS 7 A 5 A
DRIVING BEAMS FLASHING 5 A 3 A
DIRECTION 7 A 5 A
WINDSHIELD WASHER 7 A 5 A
INTERMITTENT WINDSCREEN WIPER 1,8 A 1 A
1 SPEED WINDSHIELDWIPER 8 A 5 A
2 SPEED WINDSHIELDWIPER 9 A 6 A
GENERAL LIGHTING 5 A 3 A
FORWARD GEAR 2 A 1 A
NEUTRAL 5 A 3 A
REVERSE GEAR 5 A 3 A

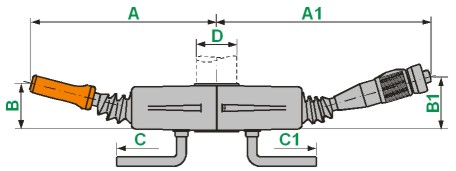

P/N A B
c74s.gifC

SPARE PART

 FUNCTION DIAMETRO
D		 FUNCTION A1 B1
c74d.gifC1		 r74d.gif
SPARE PART
01.0690.0000 230

60

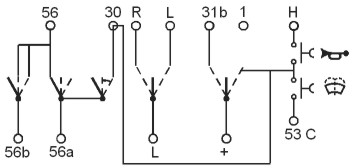

 0106900000cs_small.gif 01.0678.0600 FORWARD GEARNEUTRALREVERSE GEAR Ø 45 WARNING HORNMEETING BEAMSDRIVING BEAMSDRIVING BEAMS FLASHINGDIRECTIONWINDSHIELD WASHER1 SPEED WINDSHIELDWIPER 265 65 0106900000cd_small.gif 01.0697.0500





P/N A B c74s.gifC

SPARE PART

 FUNCTION DIAMETRO
D		 FUNCTION A1 B1 c74d.gifC1 r74d.gif
SPARE PART
01.0678.0000 230

60

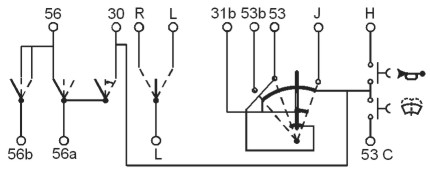

 0106780000cs_small.gif 01.0678.0600 FORWARD GEARNEUTRALREVERSE GEAR Ø 45 WARNING HORNMEETING BEAMSDRIVING BEAMSDRIVING BEAMS FLASHINGDIRECTIONWINDSHIELD WASHERINTERMITTENT WINDSCREEN WIPER1 SPEED WINDSHIELDWIPER2 SPEED WINDSHIELDWIPER 265 65 0106780000cd_small.gif 01.0678.0500
