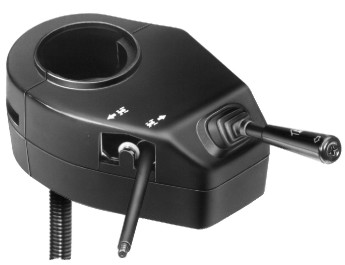

250 series STEERING COLUMN LOCKING LIGHT CONTROL SWITCH + SHIFTER

-INTERIOR LEVER: METALLIC
-LEVER COVERING: POLYAMIDE+FUNCTION SYMBOLS
-CAP: BLACK NEOPRENE RUBBER
-PROTECTION CONTAINER: POLYAMIDE
-CONNECTION CABLE: PACKARD CONNECTION
-SHIFTER ELECTRICAL CONTACTS: OPEN AIR

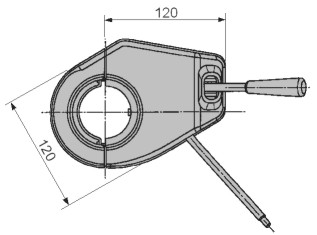

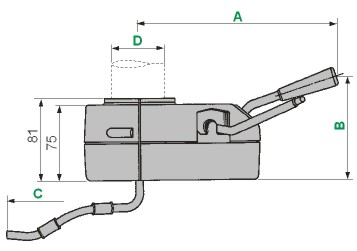

d1_small.gif      d2_small.gif

FUNCTION PEAK LOAD 12 V PEAK LOAD 24 V
WARNING HORN 5 A 3 A
MEETING BEAMS 6,5 A 4,5 A
DRIVING BEAMS 7 A 5 A
DRIVING BEAMS FLASHING 7 A 5 A
DIRECTION 7 A 5 A
FORWARD GEAR 8 A 5 A
REVERSE GEAR 8 A 5 A

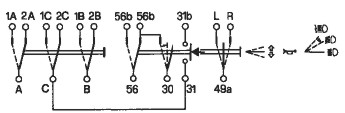

P/N A B c55s.gifC sc.gif FUNCTION DIAMETRO
D

01.250.000

 200

109



 WARNING HORNMEETING BEAMSDRIVING BEAMSDRIVING BEAMS FLASHINGDIRECTIONFORWARD GEARREVERSE GEAR Ø 52
