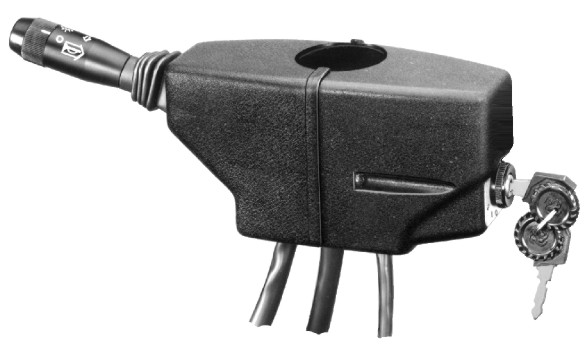

190 series STEERING COLUMN LOCKING LIGHT CONTROL SWITCH + DIMMER SWITCH




-INTERIOR-EXTERIOR LIGHTS IGNITION: TURNING KNOB LEVER
-INTERIOR LEVER: METALLIC
-LEVER COVERING: POLYAMIDE+FUNCTION SYMBOLS
-CAP: BLACK NEOPRENE RUBBER
-PROTECTION CONTAINER: BLACK ALUMINIUM ALLOY
-CONNECTION CABLE: SUITABLE WITH DIFFERENT KINDS OF CONNECTION

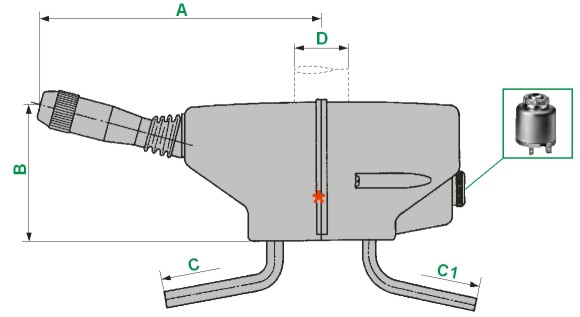

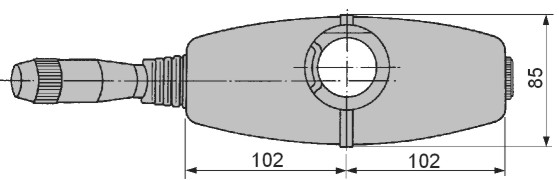

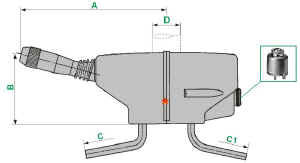

d1_small.jpg      d2_small.jpg



FUNCTION PEAK LOAD 12 V PEAK LOAD 24 V
WARNING HORN 5 A 3 A
MEETING BEAMS 6,5 A 4,5 A
DRIVING BEAMS 7 A 5 A
DRIVING BEAMS FLASHING 7 A 5 A
DIRECTION 7 A 5 A
GENERAL LIGHTING 5 A 3 A





P/N A B c38s.gifC

SPARE PART

 FUNCTION DIAMETRO
D		 FUNCTION A1 B1 c38d.gifC1 r38d.gif
SPARE PART

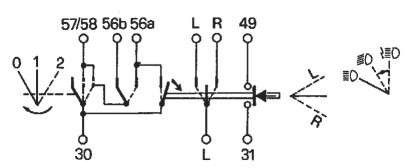

01.211.000 210

102

 c01211000s_small.gif 01.211.500 WARNING HORNMEETING BEAMSDRIVING BEAMSDRIVING BEAMS FLASHINGDIRECTIONGENERAL LIGHTING Ø 38 14176000F_small.gif     c012110000d_small.gif 01.211.600

01.216.000
APPLICATION HOLE

 210

102

 c01216000s_small.gif 01.215.500 WARNING HORNMEETING BEAMSDRIVING BEAMSDRIVING BEAMS FLASHINGDIRECTIONGENERAL LIGHTING Ø 38 14176000F_small.gif     c01216000d_small.gif 01.216.600





P/N A B c38s.gifC

SPARE PART

 FUNCTION DIAMETRO
D		 FUNCTION A1 B1 c38d.gifC1 r38d.gif
SPARE PART
01.237.000 210

102

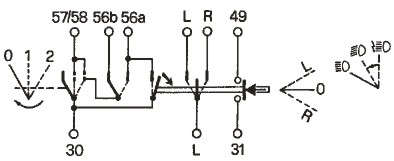

 c01237000s_small.gif 01.211.500 WARNING HORNMEETING BEAMSDRIVING BEAMSDRIVING BEAMS FLASHINGDIRECTIONGENERAL LIGHTING Ø 38 14176000F_small.gif

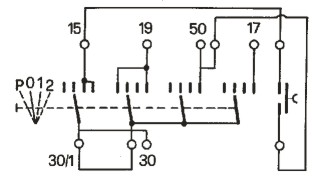

     c01237000d_small.gif 01.237.600




P/N A B c38s.gifC

SPARE PART

 FUNCTION DIAMETRO
D		 FUNCTION A1 B1 c38d.gifC1 r38d.gif
SPARE PART

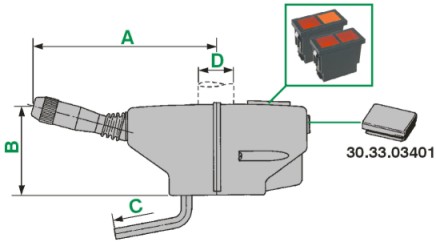

01.217.000 210

102

 c01217000_small.gif 01.217.500 WARNING HORNDIRECTION Ø 38



       01.217.600
